지난 글 Cilium BGP Control Plane [Cilium Study 5주차]에서는 PodCIDR 경로를 BGP로 전파하고, Cilium이 왜 커널 라우팅 테이블을 직접 수정하지 않는지, 그리고 다중 NIC 환경에서 발생하는 문제를 해결하는 방법을 살펴봤습니다.

이번 글에서는 Service(LoadBalancer) External IP를 BGP로 광고하는 과정을 살펴보고, ExternalTrafficPolicy(Cluster vs Local)에 따른 동작 차이와 Linux ECMP Hash Policy가 트래픽 분산/소스IP 보존/연결 안정성에 미치는 영향을 실습을 통해 알아보겠습니다.

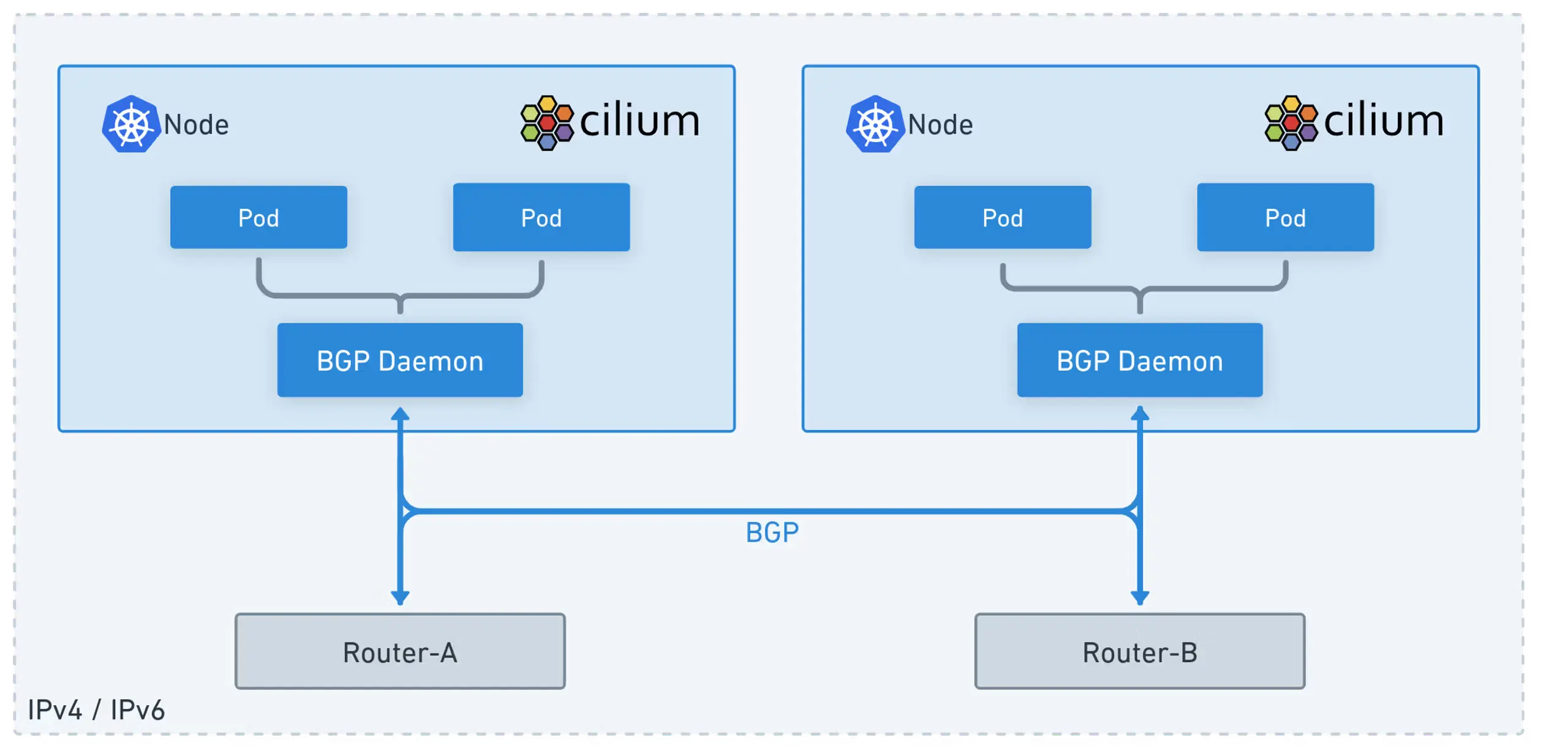

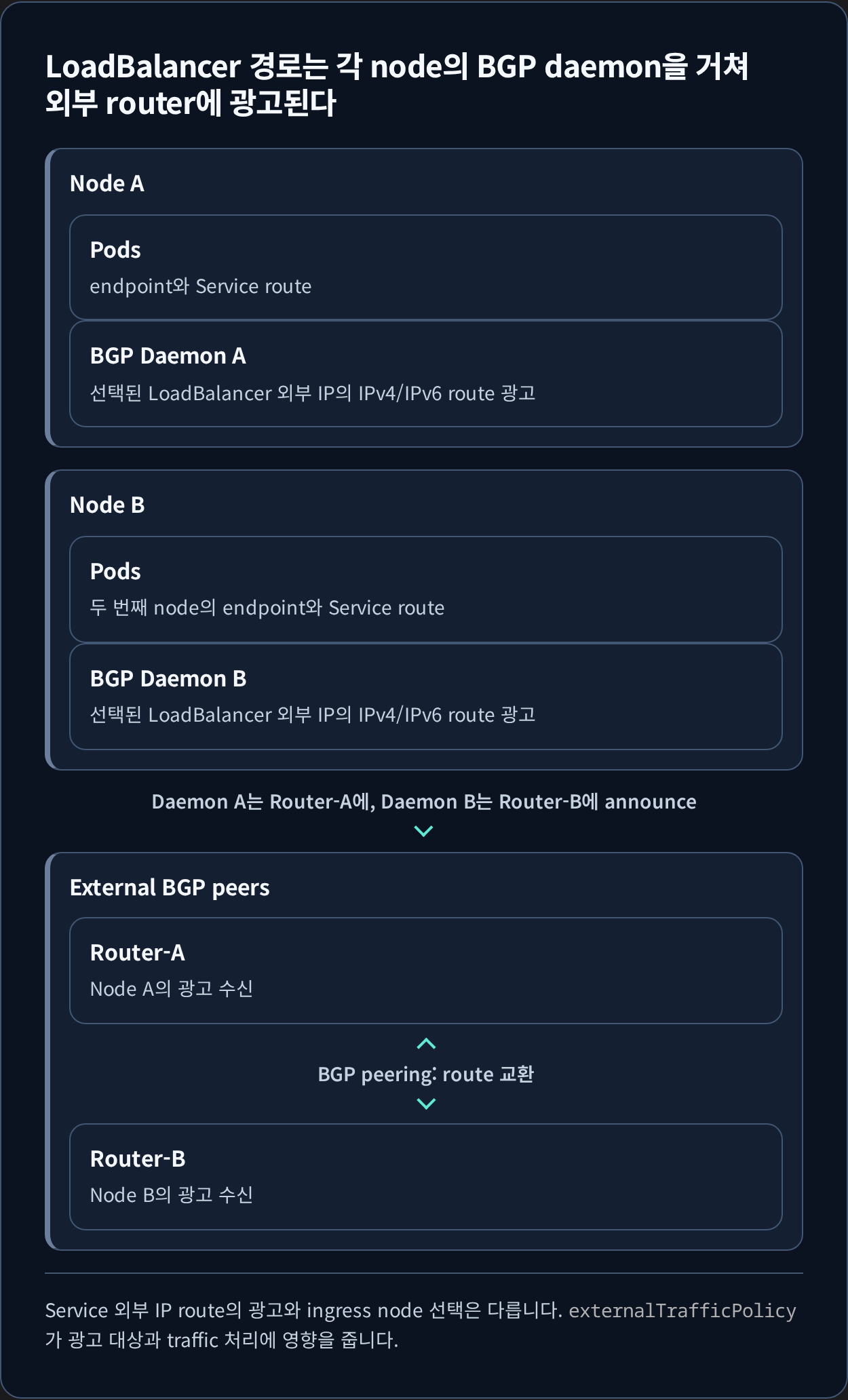

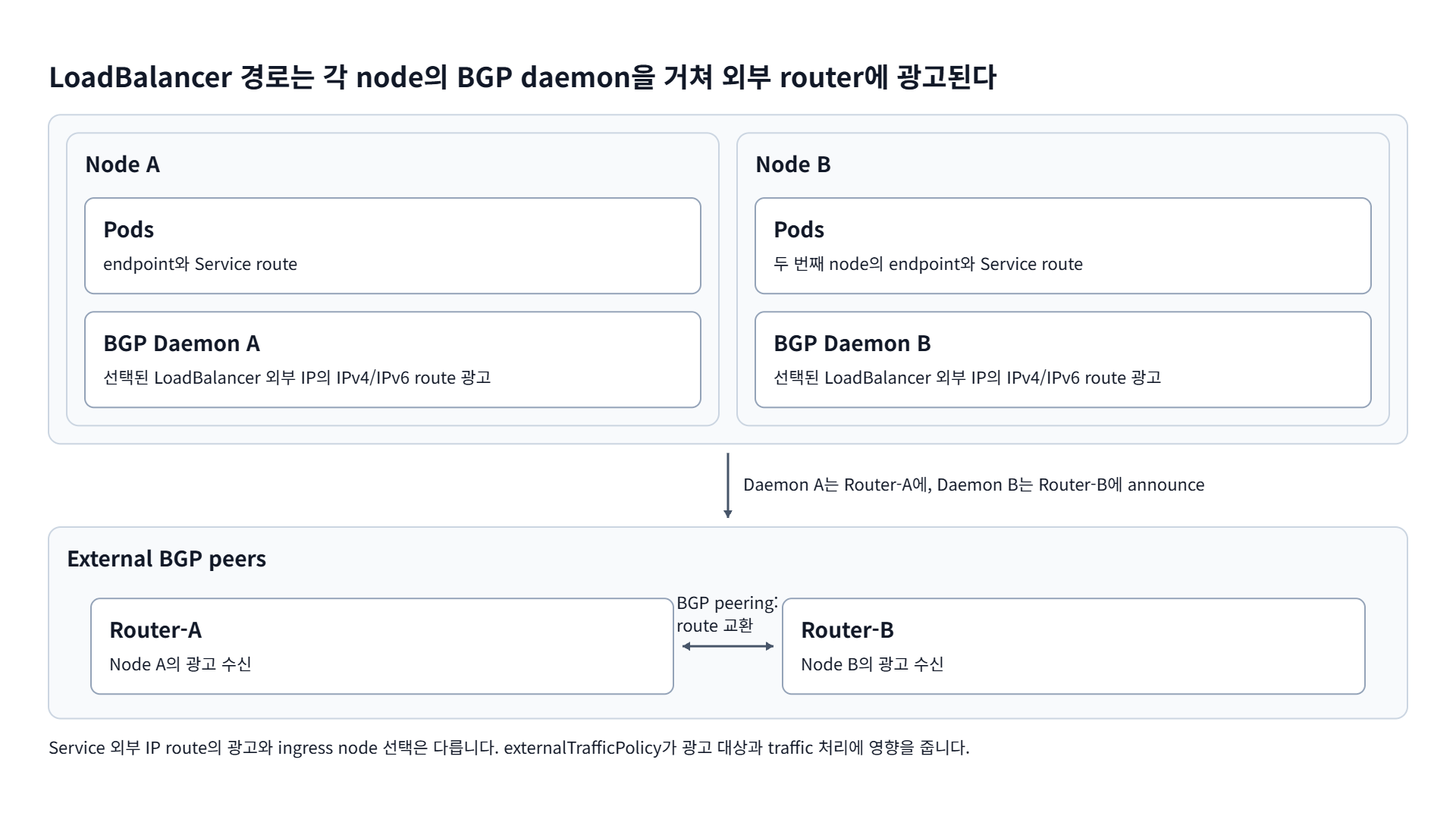

L3 Announcement over BGP

ISOVALENT Blog - Migrating from metallb to Cilium
Cilium Docs - LoadBalancer IP Address Management (LB IPAM)

관련 글

  1. Vagrant와 VirtualBox로 Kubernetes Cluster 구축하기 [Cilium Study 1주차]
  2. Flannel CNI 배포하기 [Cilium Study 1주차]
  3. Cilium CNI 알아보기 [Cilium Study 1주차]
  4. Cilium 구성요소 & 배포하기 (kube-proxy replacement) [Cilium Study 1주차]
  5. Cilium Hubble 알아보기 [Cilium Study 2주차]
  6. Cilium & Hubble Command Cheat Sheet [Cilium Study 2주차]
  7. Star Wars Demo와 함께 Cilium Network Policy 알아보기 [Cilium Study 2주차]
  8. Hubble Exporter와 Dynamic Exporter Configuration [Cilium Study 2주차]
  9. Monitoring VS Observability + SLI/SLO/SLA 알아보기 [Cilium Study 2주차]
  10. Cilium Metric Monitoring with Prometheus + Grafana [Cilium Study 2주차]
  11. Cilium Log Monitoring with Grafana Loki & Grafana Alloy [Cilium Study 2주차]
  12. IPAM 개념 및 Kubernetes Host Scope -> Cluster Scope Migration 실습 [Cilium Study 3주차]
  13. Cilium Network Routing 이해하기 – Encapsulation과 Native Routing 비교 [Cilium Study 3주차]
  14. Cilium Native Routing 통신 확인 및 문제 해결 – Static Route & BGP [Cilium Study 4주차]
  15. Cilium BGP Control Plane [Cilium Study 5주차]
  16. Cilium Service LoadBalancer BGP Advertisement & ExternalTrafficPolicy [Cilium Study 5주차] (현재 글)
  17. Kind로 Kubernetes Cluster 배포하기 [Cilium Study 5주차]
  18. Cilium Cluster Mesh [Cilium Study 5주차]
  19. Cilium Service Mesh [Cilium Study 6주차]
  20. Kube-burner 소개 및 실습 [Cilium Study 7주차]
  21. Cilium Network Security [Cilium Study 8주차]

1. 실습 환경

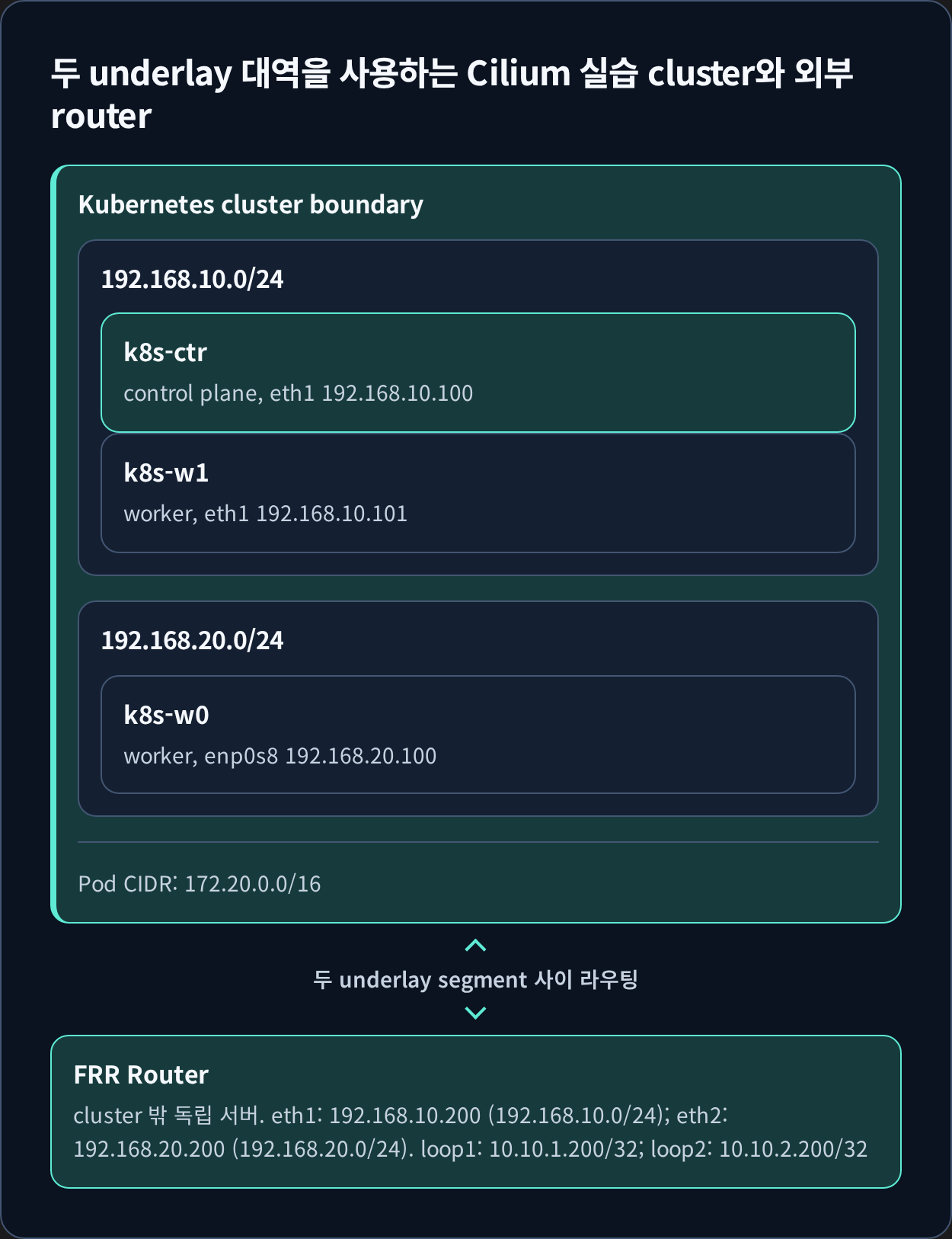

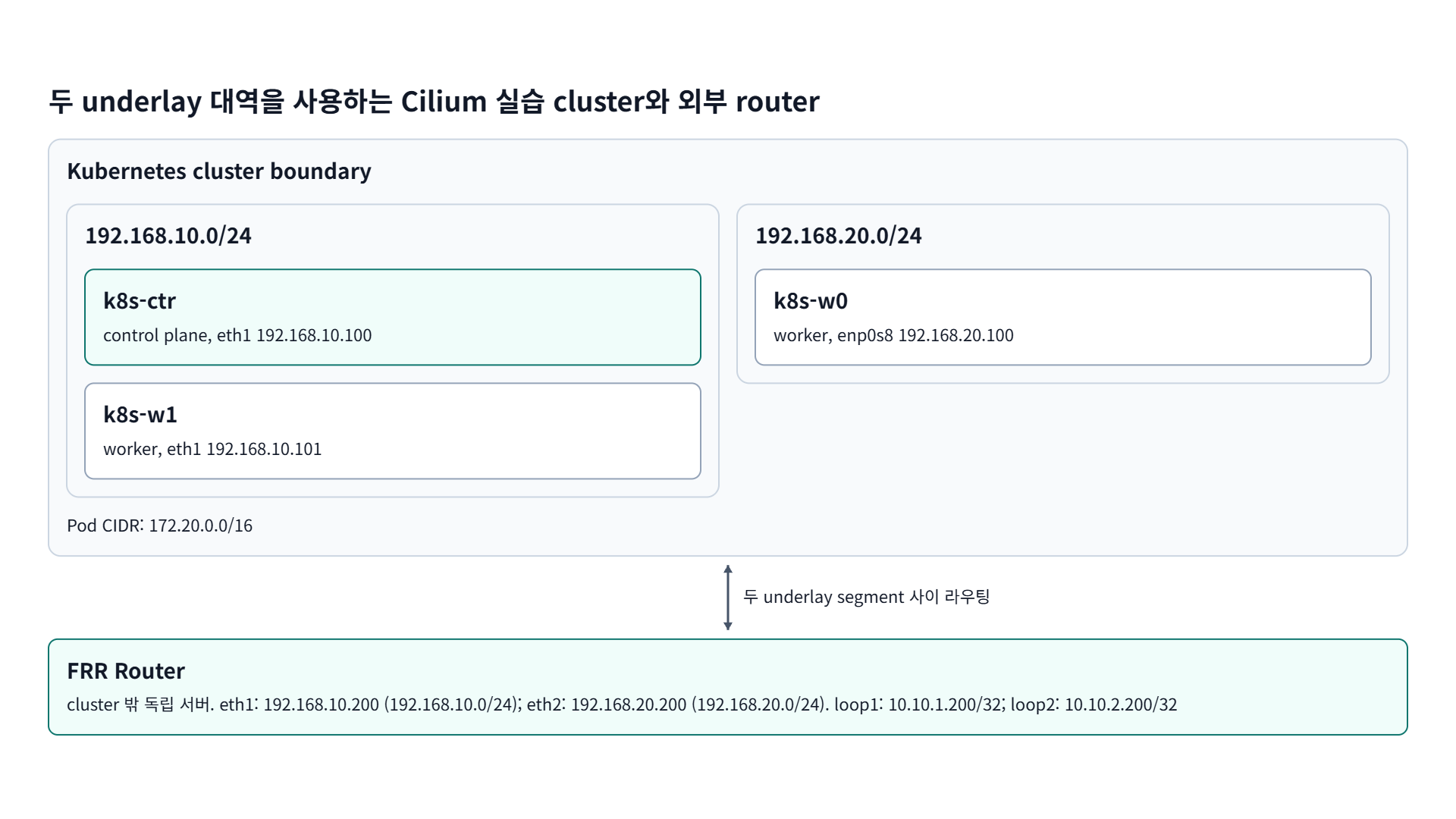

Lab Environment

  • 기본 VM: k8s-ctr, k8s-w1, k8s-w0, router(FRR)
  • router: 192.168.10.0/24 ↔ 192.168.20.0/24 라우팅, 클러스터에 join되지 않은 독립 서버, FRR 설치로 BGP 실습 가능 (FRR Docs)
  • k8s-w0: 다른 Node와 구분해 192.168.20.0/24 대역에 배치
  • Static Routing: Vagrant 스크립트에서 자동 설정됨 Vagrant Script File

FRR-Docs - FRR-Docs

2. 핵심 개념

  • LB IPAM
    • Service 타입 LoadBalancer에 사용할 외부 IP를 Cilium이 IP Pool에서 자동 할당
    • 노드 대역이 아니어도 사용 가능
  • ExternalTrafficPolicy
    • Cluster: 모든 노드가 LoadBalancer의 External-IP를 수신 -> 로컬 파드 없으면 SNAT -> 소스 IP 미보존. 모든 노드가 BGP 광고에 참여
    • Local: 로컬 파드가 있는 노드만 LoadBalancer의 External-IP를 수신 -> 소스 IP 보존. BGP도 해당 노드만 광고
  • ECMP Hash Policy (Linux)
    • 기본은 L3 해시(src/dst IP)
    • net.ipv4.fib_multipath_hash_policy=1로 바꾸면 L4 해시(IP+포트) -> 흐름 고정성이 높아져 재시도 RST/ENOTCONN이 줄어듬

3. Sample Application 배포

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

###############################################
## 1. 샘플 애플리케이션 배포
###############################################
# webpod Deployment + Service 배포
cat << EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: webpod
spec:
  replicas: 3
  selector:
    matchLabels:
      app: webpod
  template:
    metadata:
      labels:
        app: webpod
    spec:
      affinity:
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
          - labelSelector:
              matchExpressions:
              - key: app
                operator: In
                values: ["webpod"]
            topologyKey: "kubernetes.io/hostname"
      containers:
      - name: webpod
        image: traefik/whoami
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: webpod
  labels:
    app: webpod
spec:
  selector:
    app: webpod
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
  type: ClusterIP
EOF

###############################################
## curl-pod 배포 (k8s-ctr에 고정)
###############################################

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
  name: curl-pod
  labels:
    app: curl
spec:
  nodeName: k8s-ctr
  containers:
  - name: curl
    image: nicolaka/netshoot
    command: ["tail"]
    args: ["-f", "/dev/null"]
  terminationGracePeriodSeconds: 0
EOF

###############################################
## 확인
###############################################
kubectl get po -o wide
# NAME                      READY   STATUS    RESTARTS   AGE   IP             NODE      NOMINATED NODE   READINESS GATES
# curl-pod                  1/1     Running   0          8s    172.20.0.87    k8s-ctr   <none>           <none>
# webpod-5ddff96fcf-29257   1/1     Running   0          8s    172.20.2.229   k8s-w0    <none>           <none>
# webpod-5ddff96fcf-lgfqf   1/1     Running   0          8s    172.20.1.11    k8s-w1    <none>           <none>
# webpod-5ddff96fcf-lqhbb   1/1     Running   0          8s    172.20.0.47    k8s-ctr   <none>           <none>

4. LB IPAM Pool 생성 & Service를 LoadBalancer로 전환

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

###############################################
# 1) IP Pool 생성 (노드 대역이 아니어도 됨)
###############################################
cat << EOF | kubectl apply -f -
apiVersion: "cilium.io/v2"
kind: CiliumLoadBalancerIPPool
metadata:
  name: cilium-pool
spec:
  blocks:
  - cidr: "172.16.1.0/24"
EOF

###############################################
# 2) IP Pool 생성 확인
###############################################
kubectl get ippool
# NAME          DISABLED   CONFLICTING   IPS AVAILABLE   AGE
# cilium-pool   false      False         253             61m

###############################################
# 3) webpod의 Service를 LoadBalancer로 전환
###############################################
kubectl patch svc webpod -p '{"spec": {"type": "LoadBalancer"}}'

###############################################
# 4) webpod의 Service 확인
###############################################
kubectl get svc webpod
# NAME     TYPE           CLUSTER-IP     EXTERNAL-IP   PORT(S)        AGE
# webpod   LoadBalancer   10.96.170.16   172.16.1.1    80:30247/TCP   3m

5. LoadBalancer의 External-IP BGP 광고 설정

app=webpod인 Service의 LoadBalancerIP만 BGP로 광고하도록 선언합니다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

###############################################
# 1) CiliumBGPAdvertisement 배포
###############################################
cat << EOF | kubectl apply -f -
apiVersion: cilium.io/v2
kind: CiliumBGPAdvertisement
metadata:
  name: bgp-advertisements-lb-exip-webpod
  labels:
    advertise: bgp
spec:
  advertisements:
    - advertisementType: "Service"
      service:
        addresses:
          - LoadBalancerIP
      selector:
        matchExpressions:
          - { key: app, operator: In, values: [ webpod ] }
EOF

###############################################
# 2) CiliumBGPAdvertisement 배포 확인
###############################################
kubectl get CiliumBGPAdvertisement
# NAME                                AGE
# bgp-advertisements                  4m
# bgp-advertisements-lb-exip-webpod   7m

###############################################
# 3) 각 노드에서 Cilium BGP 라우터에 광고 가능한 IPv4 유니캐스크 경로 확인 (기존 PodCIDR 경로에 추가로 LoadBalancer IP가 포함됨)
###############################################
cilium bgp routes available ipv4 unicast
# Node      VRouter   Prefix          NextHop   Age      Attrs
# k8s-ctr   65001     172.16.1.1/32   0.0.0.0   8m36s   [{Origin: i} {Nexthop: 0.0.0.0}]
#           65001     172.20.0.0/24   0.0.0.0   8m36s   [{Origin: i} {Nexthop: 0.0.0.0}]
# k8s-w0    65001     172.16.1.1/32   0.0.0.0   8m36s   [{Origin: i} {Nexthop: 0.0.0.0}]
#           65001     172.20.2.0/24   0.0.0.0   8m36s   [{Origin: i} {Nexthop: 0.0.0.0}]
# k8s-w1    65001     172.16.1.1/32   0.0.0.0   8m23s   [{Origin: i} {Nexthop: 0.0.0.0}]
#           65001     172.20.1.0/24   0.0.0.0   8m23s   [{Origin: i} {Nexthop: 0.0.0.0}]

6. LoadBalancer IP로 접속 확인

6.1 Service -> Backend Mapping 확인

1
2
3
4

kubectl -n kube-system exec ds/cilium -c cilium-agent -- cilium-dbg service list | grep -A6 '172\.16\.1\.1\|webpod'
# 17   172.16.1.1:80/TCP      LoadBalancer   1 => 172.20.0.47:80/TCP (active)
#                                            2 => 172.20.1.11:80/TCP (active)
#                                            3 => 172.20.2.229:80/TCP (active)

6.2 통신 확인 (Source IP)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

###############################################
# 1) (k8s-ctr node) LoadBalancer IP 확인
###############################################
LBIP=$(kubectl get svc webpod -o jsonpath='{.status.loadBalancer.ingress[0].ip}')
echo "$LBIP"
# 172.16.1.1

###############################################
# 2) (router node) LoadBalancer IP로 통신 확인
###############################################
LBIP=172.16.1.1
curl -s http://$LBIP | egrep 'Hostname|RemoteAddr'
# Hostname: webpod-5ddff96fcf-29257
# RemoteAddr: 192.168.10.100:49962

curl -s http://$LBIP | egrep 'Hostname|RemoteAddr'
# Hostname: webpod-5ddff96fcf-lqhbb
# RemoteAddr: 192.168.10.101:49970

curl -s http://$LBIP | egrep 'Hostname|RemoteAddr'
# Hostname: webpod-5ddff96fcf-lqhbb
# RemoteAddr: 192.168.20.100:46000

curl -s http://$LBIP | egrep 'Hostname|RemoteAddr'
# Hostname: webpod-5ddff96fcf-lgfqf
# RemoteAddr: 192.168.20.200:53150

###############################################
# 3) (router node) 트래픽 분산 확인
###############################################
for i in {1..50}; do curl -s http://$LBIP | grep Hostname; done | sort | uniq -c | sort -nr
#  19 Hostname: webpod-5ddff96fcf-lqhbb
#  17 Hostname: webpod-5ddff96fcf-lgfqf
#  14 Hostname: webpod-5ddff96fcf-29257

위의 LoadBalancer의 IP로 Curl 결과를 보면 RemoteAddr이 node, router가 섞여 보이는 것을 확인할 수 있습니다.
해당 차이는 ExternalTrafficPolicy 설정에 크게 영향을 받습니다.

7. ExternalTrafficPolicy (Cluster vs Local)

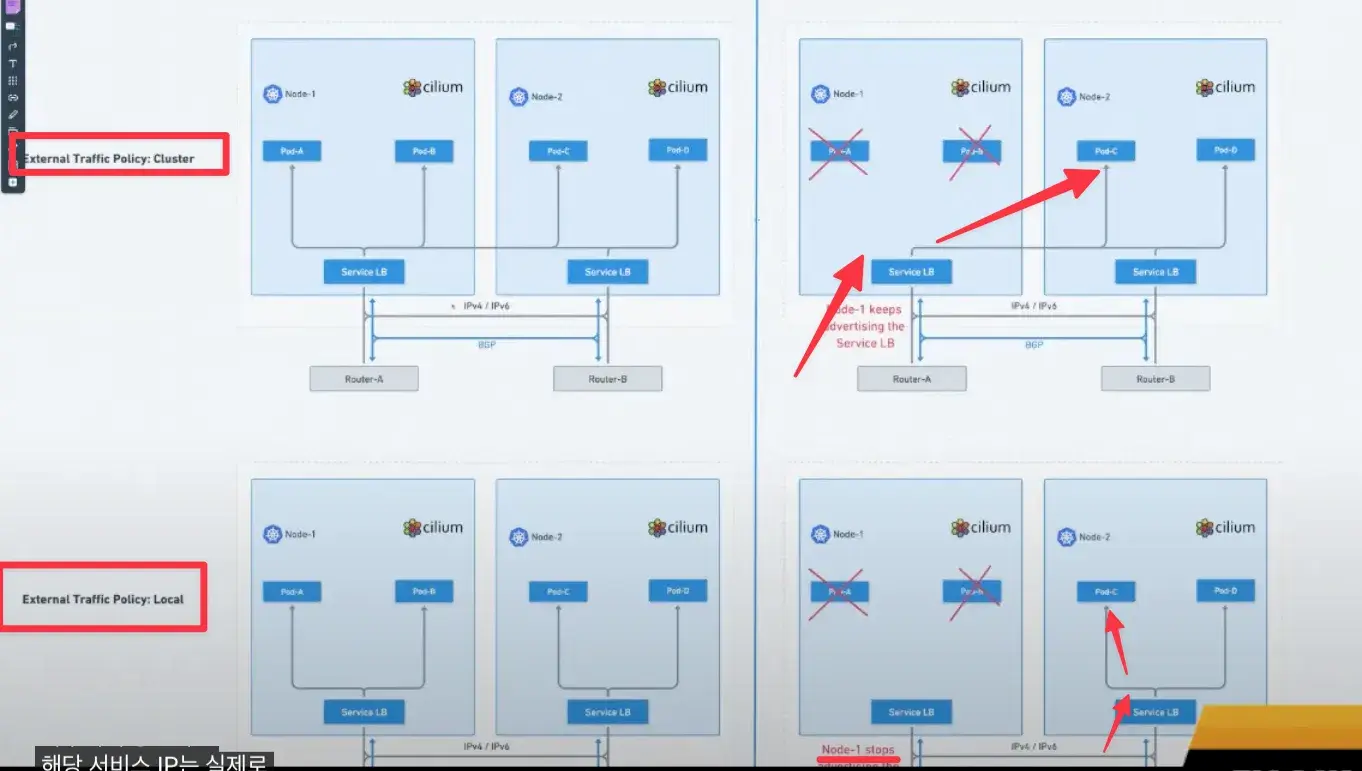

External Policy Cluster vs Local

7.1 Cluster Mode

7.1.1 Cluster Mode의 특징

  • 모든 노드가 LoadBalancer IP로 들어온 요청을 처리(수신)하고, 로컬 파드가 없어도 다른 노드로 트래픽을 전달합니다.
  • 이때 교차 노드 포워딩을 위해 수신 노드에서 SNAT가 발생 -> 소스 IP 미보존(Pod에서 보면 RemoteAddr = 노드 IP).
  • Cilium BGP는 모든 노드에서 동일 LBIP(/32)를 광고 -> 라우터는 ECMP로 여러 next-hop을 사용합니다.

7.1.2 Cluster Mode 실습

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71

###############################################
# 1) (k8s-ctr node) 현재 ExternalTrafficPolicy 확인
###############################################
kubectl describe svc webpod | grep -i "External Traffic Policy"
# External Traffic Policy:  Cluster

###############################################
# 2) (k8s-ctr node) webpod replicas 3 -> 2로 감소 및 확인
###############################################
kubectl scale deploy/webpod --replicas=2
# deployment.apps/webpod scaled

kubectl get po -o wide
# NAME                      READY   STATUS    RESTARTS   AGE   IP             NODE      NOMINATED NODE   READINESS GATES
# curl-pod                  1/1     Running   0          31m   172.20.0.87    k8s-ctr   <none>           <none>
# webpod-5ddff96fcf-29257   1/1     Running   0          31m   172.20.2.229   k8s-w0    <none>           <none>
# webpod-5ddff96fcf-lgfqf   1/1     Running   0          31m   172.20.1.11    k8s-w1    <none>           <none>

###############################################
# 3) (router node) 트래픽 분포 확인
###############################################
LBIP=172.16.1.1
for i in {1..100};  do curl -s $LBIP | grep Hostname; done | sort | uniq -c | sort -nr
# 55 Hostname: webpod-5ddff96fcf-29257
# 45 Hostname: webpod-5ddff96fcf-lgfqf

###############################################
# 4) (router node) Routing Table 및 BGP 정보 확인 (webpod가 존재하지 않는 k8s-ctr의 IP도 포함이 되어있음)
###############################################
ip -c route | grep 172.16.1.1 -A4
# 172.16.1.1 nhid 37 proto bgp metric 20
#         nexthop via 192.168.20.100 dev eth2 weight 1
#         nexthop via 192.168.10.100 dev eth1 weight 1
#         nexthop via 192.168.10.101 dev eth1 weight 1
# 172.20.0.0/24 nhid 30 via 192.168.10.100 dev eth1 proto bgp metric 20

vtysh -c 'show ip bgp'
# BGP table version is 7, local router ID is 192.168.10.200, vrf id 0
# Default local pref 100, local AS 65000
# Status codes:  s suppressed, d damped, h history, * valid, > best, = multipath,
#                i internal, r RIB-failure, S Stale, R Removed
# Nexthop codes: @NNN nexthop's vrf id, < announce-nh-self
# Origin codes:  i - IGP, e - EGP, ? - incomplete
# RPKI validation codes: V valid, I invalid, N Not found

#    Network          Next Hop            Metric LocPrf Weight Path
# *> 10.10.1.0/24     0.0.0.0                  0         32768 i
# *> 172.16.1.1/32    192.168.10.100                         0 65001 i
# *=                  192.168.20.100                         0 65001 i
# *=                  192.168.10.101                         0 65001 i
# *> 172.20.0.0/24    192.168.10.100                         0 65001 i
# *> 172.20.1.0/24    192.168.10.101                         0 65001 i
# *> 172.20.2.0/24    192.168.20.100                         0 65001 i

vtysh -c 'show ip bgp 172.16.1.1/32'
# BGP routing table entry for 172.16.1.1/32, version 7
# Paths: (3 available, best #1, table default)
#   Advertised to non peer-group peers:
#   192.168.10.100 192.168.10.101 192.168.20.100
#   65001
#     192.168.10.100 from 192.168.10.100 (192.168.10.100)
#       Origin IGP, valid, external, multipath, best (Older Path)
#       Last update: Mon Aug 18 23:30:10 2025
#   65001
#     192.168.20.100 from 192.168.20.100 (192.168.20.100)
#       Origin IGP, valid, external, multipath
#       Last update: Mon Aug 18 23:30:10 2025
#   65001
#     192.168.10.101 from 192.168.10.101 (192.168.10.101)
#       Origin IGP, valid, external, multipath
#       Last update: Mon Aug 18 23:30:22 2025

위의 상태에서는 라우터의 ECMP가 요청마다(혹은 짧은 간격의 새 연결마다) 다른 next-hop을 선택할 수 있고, 수신 노드가 로컬 파드 유무와 무관하게 처리/포워딩하기 때문에 Pod에서 관찰되는 RemoteAddr이 노드 IP로 보이는 경우가 많습니다.
Linux 기본 ECMP Hash는 L3(IP)라서, 요청마다 포트가 달라지면(새 연결) 다른 next-hop으로 갈 확률이 있습니다. 흐름 고정성이 떨어져 RST/ENOTCONN이 관찰되기도 합니다.

7.2 Local Mode

7.2.1 Local Mode의 특징

  • 로컬 파드가 있는 노드만 LoadBalancer IP 트래픽을 처리함
  • 소스 IP를 보존함 (교차 노드 포워딩 없음)
  • BGP도 파드 보유 노드만 LoadBalancer IP를 광고 -> 라우터 ECMP next-hop 수가 줄어 안정적임

7.2.2 Local Mode 실습

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

###############################################
# 1) (k8s-ctr node) ExternalTrafficPolicy를 Local로 변경
###############################################
kubectl patch service webpod -p '{"spec":{"externalTrafficPolicy":"Local"}}'

###############################################
# 2) (k8s-ctr node) ExternalTrafficPolicy 변경 확인
###############################################
kubectl describe svc webpod | grep -i "External Traffic Policy"
# External Traffic Policy:  Local

###############################################
# 3) (router node) Routing 정보 확인 (실제 pod가 있는 노드로만 라우팅 3 -> 2)
###############################################
ip -c route | grep 172.16.1.1 -A4
# 172.16.1.1 nhid 45 proto bgp metric 20
#         nexthop via 192.168.20.100 dev eth2 weight 1
#         nexthop via 192.168.10.101 dev eth1 weight 1
# 172.20.0.0/24 nhid 30 via 192.168.10.100 dev eth1 proto bgp metric 20
# 172.20.1.0/24 nhid 32 via 192.168.10.101 dev eth1 proto bgp metric 20

vtysh -c 'show ip bgp'
# BGP table version is 8, local router ID is 192.168.10.200, vrf id 0
# Default local pref 100, local AS 65000
# Status codes:  s suppressed, d damped, h history, * valid, > best, = multipath,
#                i internal, r RIB-failure, S Stale, R Removed
# Nexthop codes: @NNN nexthop's vrf id, < announce-nh-self
# Origin codes:  i - IGP, e - EGP, ? - incomplete
# RPKI validation codes: V valid, I invalid, N Not found

#    Network          Next Hop            Metric LocPrf Weight Path
# *> 10.10.1.0/24     0.0.0.0                  0         32768 i
# *= 172.16.1.1/32    192.168.20.100                         0 65001 i
# *>                  192.168.10.101                         0 65001 i
# *> 172.20.0.0/24    192.168.10.100                         0 65001 i
# *> 172.20.1.0/24    192.168.10.101                         0 65001 i
# *> 172.20.2.0/24    192.168.20.100                         0 65001 i

# Displayed  5 routes and 6 total paths

vtysh -c 'show ip bgp 172.16.1.1/32'
# BGP routing table entry for 172.16.1.1/32, version 8
# Paths: (2 available, best #2, table default)
#   Advertised to non peer-group peers:
#   192.168.10.100 192.168.10.101 192.168.20.100
#   65001
#     192.168.20.100 from 192.168.20.100 (192.168.20.100)
#       Origin IGP, valid, external, multipath
#       Last update: Mon Aug 18 23:30:11 2025
#   65001
#     192.168.10.101 from 192.168.10.101 (192.168.10.101)
#       Origin IGP, valid, external, multipath, best (Router ID)
#       Last update: Mon Aug 18 23:30:23 2025


###############################################
# 4) (router node) LoadBalancer IP로 curl 했을 때 Source IP 보존 확인
###############################################
curl -s http://$LBIP | egrep 'Hostname|RemoteAddr'
# Hostname: webpod-5ddff96fcf-lgfqf
# RemoteAddr: 192.168.20.200:36846
curl -s http://$LBIP | egrep 'Hostname|RemoteAddr'
# Hostname: webpod-5ddff96fcf-29257
# RemoteAddr: 192.168.20.200:34232
curl -s http://$LBIP | egrep 'Hostname|RemoteAddr'
# Hostname: webpod-5ddff96fcf-lgfqf
# RemoteAddr: 192.168.20.200:34248
curl -s http://$LBIP | egrep 'Hostname|RemoteAddr'
# Hostname: webpod-5ddff96fcf-lgfqf
# RemoteAddr: 192.168.20.200:34264
curl -s http://$LBIP | egrep 'Hostname|RemoteAddr'
# Hostname: webpod-5ddff96fcf-29257
# RemoteAddr: 192.168.20.200:34278

Pod에서 RemoteAddr가 router(192.168.20.200)로 실제 소스 IP로 보이는 것을 확인할 수 있습니다.
라우팅 경로가 줄면서 RST/ENOTCONN이 줄어듭니다. (stale nexthop 적음)

8. ECMP Hash Policy (Router 권장 튜닝)

Linux Kernel의 Default인 L3 ECMP Hash는 같은 IP쌍이라면 포트가 달라도 다른 ECMP path로 흘러갈 수 있습니다. 따라서 하나의 클라이언트가 같은 서버로 여러 연결을 열면, 연결들이 서로 다른 노드로 분산되어 세션 일관성(Flow Affinity)이 깨질 수 있습니다.

반면 튜플 기반인 L4 Hash를 사용하게 되면 L3 Hash(default) 대비 흐름 고정성이 올라가서, 새 연결이라도 트래픽이 동일하게으로 흘러갑니다. 따라서 Cluster/Local Mode 모두에서 분산 품질과 연결 안정성이 개선될 수 있습니다.

  • ECMP (Equal-Cost Multi-Path): 동일 목적지에 대해 동일한 비용(cost)을 가지는 라우트가 여러 개 있을 때, 커널은 이들 중 하나를 선택해 패킷을 전달 (리눅스 커널 기본값 fib_multipath_hash_policy=0 (L3 Hash))
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

###############################################
# 즉시 적용
###############################################
sudo sysctl -w net.ipv4.fib_multipath_hash_policy=1

###############################################
# 영구 적용
###############################################
echo "net.ipv4.fib_multipath_hash_policy=1" | sudo tee -a /etc/sysctl.conf

###############################################
# 확인
###############################################
sysctl net.ipv4.fib_multipath_hash_policy
# net.ipv4.fib_multipath_hash_policy = 1

9. 마무리

  • LB IPAM + BGP로 노드 대역과 무관한 LBIP를 /32로 광고하면, 라우터는 ECMP로 각 노드에 트래픽을 분산합니다.
  • ExternalTrafficPolicy에 따라
    • Cluster: 모든 노드 수신 + SNAT(소스IP 미보존) / nexthop ↑ / 분산 폭 넓음
    • Local: 로컬 파드 보유 노드만 수신 + 소스IP 보존 / nexthop ↓ / 안정성↑
  • ECMP Hash를 L4로 바꾸면 흐름 고정성이 높아져 RST/ENOTCONN이 크게 줄어듭니다.

10. Reference

궁금하신 점이나 추가해야 할 부분은 댓글이나 아래의 링크를 통해 문의해주세요.
Written with KKamJi

Kubernetes, Cilium
kubernetes devops cilium cilium-study bgp lb-ipam external-traffic-policy ecmp
This post is licensed under CC BY 4.0 by the author.
