Kube-burner 소개 및 실습 [Cilium Study 7주차]

Posted Updated
Preview Image
By KKamJi
views 24 min read

Cilium은 Kubernetes 내부에서 동작합니다. 따라서 Cilium이 본래의 성능을 내기 위해서는 Kubernetes Cluster 자체의 탄탄한 퍼포먼스 뒷받침되어야 합니다.

이번 글에서는 Kubernetes Cluster의 Performance를 정량적으로 측정하고 비교 가능한 기준선을 만드는 도구인 Kube-burner에 대해 알아보고, 로컬 Kind Kubernetes Cluster에서 해당 툴에 대한 실습내용에 대해 공유하도록 하겠습니다.

Kube-burner Docs Kube-burner GitHub

관련 글

  1. Vagrant와 VirtualBox로 Kubernetes Cluster 구축하기 [Cilium Study 1주차]
  2. Flannel CNI 배포하기 [Cilium Study 1주차]
  3. Cilium CNI 알아보기 [Cilium Study 1주차]
  4. Cilium 구성요소 & 배포하기 (kube-proxy replacement) [Cilium Study 1주차]
  5. Cilium Hubble 알아보기 [Cilium Study 2주차]
  6. Cilium & Hubble Command Cheat Sheet [Cilium Study 2주차]
  7. Star Wars Demo와 함께 Cilium Network Policy 알아보기 [Cilium Study 2주차]
  8. Hubble Exporter와 Dynamic Exporter Configuration [Cilium Study 2주차]
  9. Monitoring VS Observability + SLI/SLO/SLA 알아보기 [Cilium Study 2주차]
  10. Cilium Metric Monitoring with Prometheus + Grafana [Cilium Study 2주차]
  11. Cilium Log Monitoring with Grafana Loki & Grafana Alloy [Cilium Study 2주차]
  12. IPAM 개념 및 Kubernetes Host Scope -> Cluster Scope Migration 실습 [Cilium Study 3주차]
  13. Cilium Network Routing 이해하기 – Encapsulation과 Native Routing 비교 [Cilium Study 3주차]
  14. Cilium Native Routing 통신 확인 및 문제 해결 – Static Route & BGP [Cilium Study 4주차]
  15. Cilium BGP Control Plane [Cilium Study 5주차]
  16. Cilium Service LoadBalancer BGP Advertisement & ExternalTrafficPolicy [Cilium Study 5주차]
  17. Kind로 Kubernetes Cluster 배포하기 [Cilium Study 5주차]
  18. Cilium Cluster Mesh [Cilium Study 5주차]
  19. Cilium Service Mesh [Cilium Study 6주차]
  20. Kube-burner 소개 및 실습 [Cilium Study 7주차] (현재 글)

1. Kube-burner 소개

Kube-burner는 Kubernetes Performance, Scale Test Orchestration toolset입니다. Kube-burner가 제공하는 주요 기능은 아래와 같습니다.

  • Create, delete, read, and patch Kubernetes resources at scale
  • Prometheus metric collection and indexing
  • Measurements
  • Alerting

2. 실습 환경 구성

Kube-burner로 부하 테스트를 실행하기 전에, 실습 환경인 Kind Kubernetes Cluster와 Monitoring에 사용되는 아래 구성요소들을 배포하도록 하겠습니다.

2.1 Kubernetes Cluster 생성 (Kind)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

########################################################
# kind를 사용해 myk8s Cluster 배포
########################################################
# Prometheus Target connection refused bind-address 설정 : kube-controller-manager , kube-scheduler , etcd , kube-proxy
kind create cluster --name myk8s --image kindest/node:v1.33.2 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 30000
    hostPort: 30000
  - containerPort: 30001
    hostPort: 30001
  - containerPort: 30002
    hostPort: 30002
  - containerPort: 30003
    hostPort: 30003
  kubeadmConfigPatches: # Prometheus Target connection refused bind-address 설정
  - |
    kind: ClusterConfiguration
    controllerManager:
      extraArgs:
        bind-address: 0.0.0.0
    etcd:
      local:
        extraArgs:
          listen-metrics-urls: http://0.0.0.0:2381
    scheduler:
      extraArgs:
        bind-address: 0.0.0.0
  - |
    kind: KubeProxyConfiguration
    metricsBindAddress: 0.0.0.0
EOF

kind get clusters
# myk8s

########################################################
# kube-ops-view 설치
########################################################
helm repo add geek-cookbook https://geek-cookbook.github.io/charts/
helm install kube-ops-view geek-cookbook/kube-ops-view --version 1.2.2 --set service.main.type=NodePort,service.main.ports.http.nodePort=30003 --set env.TZ="Asia/Seoul" --namespace kube-system

# 접속 확인
http://localhost:30003/#scale=1.5
http://localhost:30003/#scale=2

########################################################
# metrics-server 설치
########################################################
helm repo add metrics-server https://kubernetes-sigs.github.io/metrics-server/
helm upgrade --install metrics-server metrics-server/metrics-server --set 'args[0]=--kubelet-insecure-tls' -n kube-system

# 확인
kubectl top node
kubectl top pod -A --sort-by='cpu'
kubectl top pod -A --sort-by='memory'

2.2 Kube-Prometheus-Stack 설치

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

########################################################
# Kube Prometheus Stack Helm Chart Value 파일 생성
########################################################
cat <<EOT > monitor-values.yaml
prometheus:
  prometheusSpec:
    scrapeInterval: "15s"
    evaluationInterval: "15s"
  service:
    type: NodePort
    nodePort: 30001

grafana:
  defaultDashboardsTimezone: Asia/Seoul
  adminPassword: prom-operator
  service:
    type: NodePort
    nodePort: 30002

alertmanager:
  enabled: false
defaultRules:
  create: false
prometheus-windows-exporter:
  prometheus:
    monitor:
      enabled: false
EOT
cat monitor-values.yaml

########################################################
# Kube Prometheus Stack Helm Chart Repository 추가 및 배포
########################################################
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update

# 배포
helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack --version 75.15.1 \
-f monitor-values.yaml --create-namespace --namespace monitoring

########################################################
# Prometheus + Grafana 접속 확인
########################################################
http://127.0.0.1:30001 # prometheus 웹 접속
http://127.0.0.1:30002 # grafana 웹 접속 ( admin , prom-operator )


########################################################
# 대시보드 추가 (15661, 12006)
########################################################
1. K8S Dashboard (15661)
  link: https://grafana.com/grafana/dashboards/15661-k8s-dashboard-en-20250125/
2. Kubernetes apiserver (12006)
  link: https://grafana.com/grafana/dashboards/12006-kubernetes-apiserver/

  • K8S Dashboard 확인 K8S Dashboard

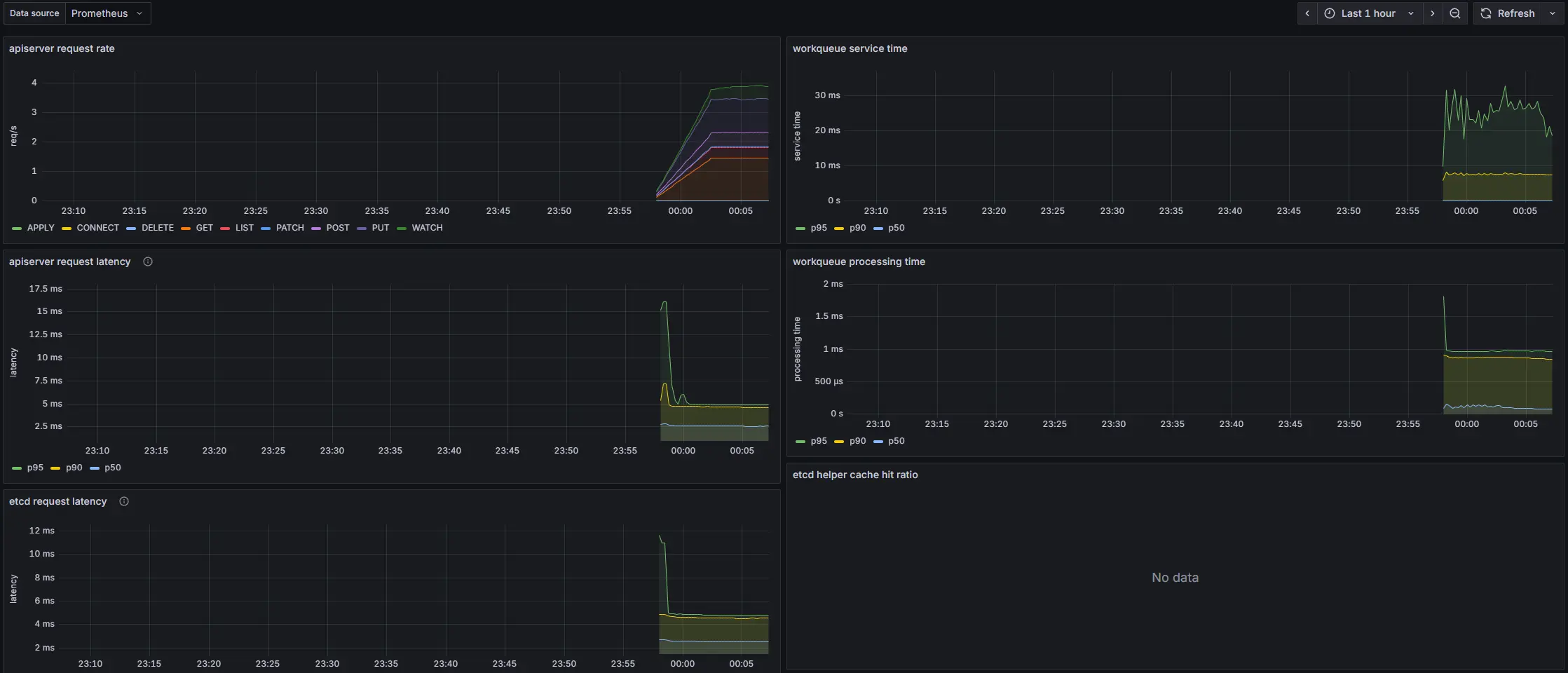

  • Kubernetes apiserver Dashboard 확인 Kubernetes apiserver Dashboard

3. Kube-burner 설치

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

# 바이너리 설치 mac M (arm)
curl -LO https://github.com/kube-burner/kube-burner/releases/download/v1.17.3/kube-burner-V1.17.3-darwin-arm64.tar.gz # mac M
tar -xvf kube-burner-V1.17.3-darwin-arm64.tar.gz

# 바이너리 설치 linux (amd)
curl -LO https://github.com/kube-burner/kube-burner/releases/download/v1.17.3/kube-burner-V1.17.3-linux-x86_64.tar.gz # Windows
tar -xvf kube-burner-V1.17.3-linux-x86_64.tar.gz

sudo cp kube-burner /usr/local/bin

kube-burner -h
  check-alerts Evaluate alerts for the given time range
  completion   Generates completion scripts for bash shell
  destroy      Destroy old namespaces labeled with the given UUID.
  health-check Check for Health Status of the cluster
  help         Help about any command
  import       Import metrics tarball
  index        Index kube-burner metrics
  init         Launch benchmark
  measure      Take measurements for a given set of resources without running workload
  version      Print the version number of kube-burner

# 버전 확인 : 혹은 go run cmd/kube-burner/kube-burner.go -h
kube-burner version
Version: 1.17.3

4. Kube-burner Job Type 정리

키 타입 기본값 설명
jobIterations Integer 0 해당 Job을 몇 번 반복 실행할지 지정
qps Integer 0 초당 API 요청 상한치
burst Integer 0 짧은 구간에서 허용되는 최대 버스트 요청 수
namespace String "" 객체가 생성될 기본 네임스페이스 이름. 비어 있으면 namespace-<iteration> 형태로 생성
namespaceLabels Object {} kube-burner가 생성하는 네임스페이스에 추가할 라벨 집합
waitWhenFinished Boolean true Job 종료 시 객체 준비 완료를 기다릴지 여부
verifyObjects Boolean true 반복별 생성된 객체 수를 검증할지 여부
preLoadImages Boolean false Job 실행 전 DaemonSet으로 이미지 프리로드 수행 여부
preLoadPeriod Duration 1m 프리로드 대기 시간 설정

Kube-burner Docs - Jobs

5. 실습

5.1 시나리오 1. 디플로이먼트 1개 생성 후 삭제하며 qps·burst 의미 확인

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138

########################################################
# s1-config.yaml
########################################################
cat << EOF > s1-config.yaml
global:
  measurements:
    - name: none

jobs:
  - name: create-deployments
    jobType: create
    jobIterations: 1  # How many times to execute the job , 해당 값이 5면 5번 반복 실행
    qps: 1            # Limit object creation queries per second , 	초당 최대 요청 수 (평균 속도 제한) - qps: 10이면 초당 10개 요청
    burst: 1          # Maximum burst for throttle , 순간적으로 처리 가능한 요청 최대치 (버퍼) - burst: 20이면 한순간에 최대 20개까지 처리 가능
    namespace: kube-burner-test
    namespaceLabels: {kube-burner-job: delete-me}
    waitWhenFinished: true # false
    verifyObjects: false
    preLoadImages: true # false
    preLoadPeriod: 30s # default 1m
    objects:
      - objectTemplate: s1-deployment.yaml
        replicas: 1
EOF

########################################################
# s1-deployment.yaml
########################################################
cat << EOF > s1-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deployment-{{ .Iteration}}-{{.Replica}}
  labels:
    app: test-{{ .Iteration }}-{{.Replica}}
    kube-burner-job: delete-me
spec:
  replicas: 1
  selector:
    matchLabels:
      app: test-{{ .Iteration}}-{{.Replica}}
  template:
    metadata:
      labels:
        app: test-{{ .Iteration}}-{{.Replica}}
    spec:
      containers:
        - name: nginx
          image: nginx:alpine
          ports:
            - containerPort: 80
EOF

########################################################
# 모니터링을 위해 ns, pod 새 터미널에서 실행
########################################################
watch -d 'kubectl get ns,pod -A'

########################################################
# 부하 실행
########################################################
kube-burner init -c s1-config.yaml --log-level debug

########################################################
# 생성 확인
########################################################
kubectl get deploy -A -l kube-burner-job=delete-me
# NAMESPACE            NAME             READY   UP-TO-DATE   AVAILABLE   AGE
# kube-burner-test-0   deployment-0-1   1/1     1            1           4m6s
kubectl get pod -A -l kube-burner-job=delete-me
# NAME                 STATUS   AGE
# kube-burner-test-0   Active   4m12s
kubectl get ns -l kube-burner-job=delete-me
# NAME                 STATUS   AGE
# kube-burner-test-0   Active   5m50s

########################################################
# 로그 확인
########################################################
ls kube-burner-*.log
cat kube-burner-*.log
time="2025-08-26 01:44:53" level=info msg="🔥 Starting kube-burner (1.17.3@917540ff45a89386bb25de45af9b96c9fc360e93) with UUID 52b2e718-ef14-41fc-be48-354dc946faeb" file="job.go:91"
time="2025-08-26 01:44:53" level=warning msg="Measurement [none] is not supported" file="factory.go:101"
time="2025-08-26 01:44:53" level=debug msg="job.MaxWaitTimeout is zero in create-deployments, override by timeout: 4h0m0s" file="job.go:361"
time="2025-08-26 01:44:53" level=info msg="QPS: 1" file="job.go:371"
time="2025-08-26 01:44:53" level=info msg="Burst: 1" file="job.go:378"
time="2025-08-26 01:44:53" level=debug msg="Preparing create job: create-deployments" file="create.go:46"
time="2025-08-26 01:44:53" level=debug msg="Rendering template: s1-deployment.yaml" file="create.go:52"
time="2025-08-26 01:44:53" level=info msg="Job create-deployments: 1 iterations with 1 Deployment replicas" file="create.go:84"
time="2025-08-26 01:44:53" level=info msg="Pre-load: images from job create-deployments" file="pre_load.go:73"
time="2025-08-26 01:44:53" level=debug msg="Created namespace: preload-kube-burner" file="namespaces.go:55"
time="2025-08-26 01:44:53" level=info msg="Pre-load: Creating DaemonSet using images [nginx:alpine] in namespace preload-kube-burner" file="pre_load.go:195"
time="2025-08-26 01:44:53" level=info msg="Pre-load: Sleeping for 30s" file="pre_load.go:86"
time="2025-08-26 01:45:25" level=info msg="Deleting 1 namespaces with label: kube-burner-preload=true" file="namespaces.go:67"
time="2025-08-26 01:45:25" level=debug msg="Waiting for 1 namespaces labeled with kube-burner-preload=true to be deleted" file="namespaces.go:90"
time="2025-08-26 01:45:26" level=debug msg="Waiting for 1 namespaces labeled with kube-burner-preload=true to be deleted" file="namespaces.go:90"
time="2025-08-26 01:45:27" level=debug msg="Waiting for 1 namespaces labeled with kube-burner-preload=true to be deleted" file="namespaces.go:90"
time="2025-08-26 01:45:28" level=debug msg="Waiting for 1 namespaces labeled with kube-burner-preload=true to be deleted" file="namespaces.go:90"
time="2025-08-26 01:45:29" level=debug msg="Waiting for 1 namespaces labeled with kube-burner-preload=true to be deleted" file="namespaces.go:90"
time="2025-08-26 01:45:30" level=debug msg="Waiting for 1 namespaces labeled with kube-burner-preload=true to be deleted" file="namespaces.go:90"
time="2025-08-26 01:45:31" level=info msg="Triggering job: create-deployments" file="job.go:122"
time="2025-08-26 01:45:31" level=info msg="0/1 iterations completed" file="create.go:119"
time="2025-08-26 01:45:31" level=debug msg="Creating object replicas from iteration 0" file="create.go:122"
time="2025-08-26 01:45:32" level=debug msg="Created namespace: kube-burner-test-0" file="namespaces.go:55"
time="2025-08-26 01:45:32" level=debug msg="Created Deployment/deployment-0-1 in namespace kube-burner-test-0" file="create.go:288"
time="2025-08-26 01:45:32" level=info msg="Waiting up to 4h0m0s for actions to be completed" file="create.go:169"
time="2025-08-26 01:45:33" level=debug msg="Waiting for replicas from Deployment in ns kube-burner-test-0 to be ready" file="waiters.go:152"
time="2025-08-26 01:45:34" level=info msg="Actions in namespace kube-burner-test-0 completed" file="waiters.go:74"
time="2025-08-26 01:45:34" level=info msg="Job create-deployments took 3s" file="job.go:191"
time="2025-08-26 01:45:34" level=info msg="Finished execution with UUID: 52b2e718-ef14-41fc-be48-354dc946faeb" file="job.go:264"
time="2025-08-26 01:45:34" level=info msg="👋 Exiting kube-burner 52b2e718-ef14-41fc-be48-354dc946faeb" file="kube-burner.go:90"

########################################################
# 삭제
########################################################
## deployment 는 s1-deployment.yaml 에 metadata.labels 에 추가한 labels 로 지정
## namespace 는 config.yaml 에 job.name 값을 labels 로 지정
cat << EOF > s1-config-delete.yaml
# global:
#   measurements:
#     - name: none

jobs:
  - name: delete-deployments-namespace
    qps: 500
    burst: 500
    namespace: kube-burner-test
    jobType: delete
    waitWhenFinished: true
    objects:
    - kind: Deployment
      labelSelector: {kube-burner-job: delete-me}
      apiVersion: apps/v1
    - kind: Namespace
      labelSelector: {kube-burner-job: delete-me}
EOF

kube-burner init -c s1-config-delete.yaml --log-level debug

5.2 시나리오 2. 노드 1대에 pod 100개 배포 시도 (max_pods limit보다 더 많은 pod 생성)

위에서 사용한 s1-config.yaml 파일의 설정을 아래와 같이 변경 후 실행 (max_pods limit 보다 더 많은 pod를 생성하도록)

  • jobIterations: 100
  • qps: 300
  • burst: 300
  • objects.replicas: 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117

########################################################
# s1-config.yaml
########################################################
cat << EOF > s1-config.yaml
global:
  measurements:
    - name: none

jobs:
  - name: create-deployments
    jobType: create
    jobIterations: 100  # How many times to execute the job
    qps: 300            # Limit object creation queries per second
    burst: 300          # Maximum burst for throttle
    namespace: kube-burner-test
    namespaceLabels: {kube-burner-job: delete-me}
    waitWhenFinished: true # false
    verifyObjects: false
    preLoadImages: true # false
    preLoadPeriod: 30s # default 1m
    objects:
      - objectTemplate: s1-deployment.yaml
        replicas: 1
EOF

########################################################
# s1-deployment.yaml
########################################################
cat << EOF > s1-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deployment-{{ .Iteration}}-{{.Replica}}
  labels:
    app: test-{{ .Iteration }}-{{.Replica}}
    kube-burner-job: delete-me
spec:
  replicas: 1
  selector:
    matchLabels:
      app: test-{{ .Iteration}}-{{.Replica}}
  template:
    metadata:
      labels:
        app: test-{{ .Iteration}}-{{.Replica}}
    spec:
      containers:
        - name: nginx
          image: nginx:alpine
          ports:
            - containerPort: 80
EOF

########################################################
# 모니터링을 위해 ns, pod 새 터미널에서 실행
########################################################
watch -d 'kubectl get ns,pod -A'
watch -d 'kubectl get pod -A | grep -v " Running"'

########################################################
# 부하 실행 (문제 발생 max_pods limit)
########################################################
kube-burner init -c s1-config.yaml --log-level debug
...
time="2025-08-26 02:25:54" level=debug msg="Waiting for replicas from Deployment in ns kube-burner-test-96 to be ready" file="waiters.go:152"
time="2025-08-26 02:25:55" level=debug msg="Waiting for replicas from Deployment in ns kube-burner-test-99 to be ready" file="waiters.go:152"
time="2025-08-26 02:25:55" level=debug msg="Waiting for replicas from Deployment in ns kube-burner-test-94 to be ready" file="waiters.go:152"
time="2025-08-26 02:25:55" level=debug msg="Waiting for replicas from Deployment in ns kube-burner-test-96 to be ready" file="waiters.go:152"
time="2025-08-26 02:25:55" level=debug msg="Waiting for replicas from Deployment in ns kube-burner-test-98 to be ready" file="waiters.go:152"
time="2025-08-26 02:25:55" level=debug msg="Waiting for replicas from Deployment in ns kube-burner-test-95 to be ready" file="waiters.go:152"
time="2025-08-26 02:25:55" level=debug msg="Waiting for replicas from Deployment in ns kube-burner-test-97 to be ready" file="waiters.go:152"

########################################################
# Pending pod 확인
########################################################
watch -d 'kubectl get pod -A | grep -v " Running"' # 해당 터미널
# NAMESPACE             NAME                                                        READY   STATUS    RESTARTS   AGE
# kube-burner-test-94   deployment-94-1-77c4dd5748-gbnmx                            0/1     Pending   0          6m25s
# kube-burner-test-95   deployment-95-1-8648f64d9d-mtsnw                            0/1     Pending   0          6m25s
# kube-burner-test-96   deployment-96-1-775c7ccb4d-xxrdw                            0/1     Pending   0          6m25s
# kube-burner-test-97   deployment-97-1-b6d9d8874-kh2bn                             0/1     Pending   0          6m24s
# kube-burner-test-98   deployment-98-1-6c577b4588-55bjr                            0/1     Pending   0          6m24s
# kube-burner-test-99   deployment-99-1-b6f7fccd-jz4b6                              0/1     Pending   0          6m24s

########################################################
# 이벤트 확인
########################################################
kubectl describe pod -n kube-burner-test-99 | grep Events: -A5
# Events:
#   Type     Reason            Age   From               Message
#   ----     ------            ----  ----               -------
#   Warning  FailedScheduling  57s   default-scheduler  0/1 nodes are available: 1 Too many pods. preemption: 0/1 nodes are available: 1 No preemption victims found for incoming pod.

########################################################
# max_pods limit 확인
########################################################
kubectl describe node | grep Capacity -A13
# Capacity:
#   cpu:                4
#   ephemeral-storage:  1055762868Ki
#   hugepages-1Gi:      0
#   hugepages-2Mi:      0
#   memory:             12250356Ki
#   pods:               110
# Allocatable:
#   cpu:                4
#   ephemeral-storage:  1055762868Ki
#   hugepages-1Gi:      0
#   hugepages-2Mi:      0
#   memory:             12250356Ki
#   pods:               110

########################################################
# 현재 pod 개수 확인
########################################################
kubectl get pod -A --no-headers | wc -l
116

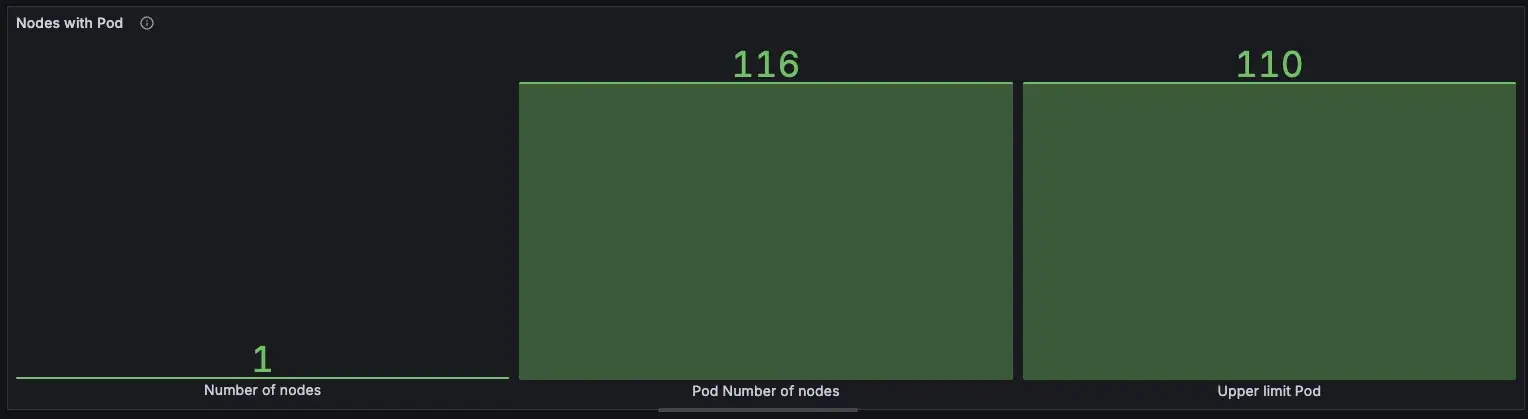

Grafana Dashboard Pod Number and Nodes

5.2.1 해결 (max_pods limit 증가)

위에서 max_pods limit이 110에 걸려 6개의 pod가 Pending 상태임을 확인했습니다. max_pods limit을 증가 시켜 위의 문제를 해결해보겠습니다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84

########################################################
# Kind Kubernetes Cluster의 Control Plane Shell 접근
########################################################
docker exec -it myk8s-control-plane bash

########################################################
# kubelet config 확인 (maxPods 설정이 없으면 default 값으로 100 적용)
########################################################
cat /var/lib/kubelet/config.yaml | grep maxPods

########################################################
# maxPods 설정을 통해 limit 향상
########################################################
apt update && apt install vim -y
vim /var/lib/kubelet/config.yaml

## 추가
maxPods: 150

########################################################
# kubelet 재시작
########################################################
systemctl restart kubelet
systemctl status kubelet
exit


########################################################
# maxPods 설정 확인 (110 -> 150)
########################################################
kubectl describe node | grep Capacity -A13
# Capacity:
#   cpu:                4
#   ephemeral-storage:  1055762868Ki
#   hugepages-1Gi:      0
#   hugepages-2Mi:      0
#   memory:             12250356Ki
#   pods:               150
# Allocatable:
#   cpu:                4
#   ephemeral-storage:  1055762868Ki
#   hugepages-1Gi:      0
#   hugepages-2Mi:      0
#   memory:             12250356Ki
#   pods:               150

########################################################
# Pending Pod 존재 확인
########################################################
kubectl get pod -A --no-headers | grep -v " Running" | wc -l
# 0

########################################################
# Running Pod 개수 확인
########################################################
kubectl get pod -A --no-headers | grep " Running" | wc -l
# 116

########################################################
# 삭제
########################################################
## deployment 는 s1-deployment.yaml 에 metadata.labels 에 추가한 labels 로 지정
## namespace 는 config.yaml 에 job.name 값을 labels 로 지정
cat << EOF > s1-config-delete.yaml
# global:
#   measurements:
#     - name: none

jobs:
  - name: delete-deployments-namespace
    qps: 500
    burst: 500
    namespace: kube-burner-test
    jobType: delete
    waitWhenFinished: true
    objects:
    - kind: Deployment
      labelSelector: {kube-burner-job: delete-me}
      apiVersion: apps/v1
    - kind: Namespace
      labelSelector: {kube-burner-job: delete-me}
EOF

kube-burner init -c s1-config-delete.yaml --log-level debug

5.3 시나리오 3. 노드 1대에 pod 300개 배포 시도 (PodCIDR 사이즈보다 많은 pod 생성)

위에서 사용한 s1-config.yaml 파일의 설정을 아래와 같이 변경 후 실행 (부하가 많이 들어가도록)

  • jobIterations: 300
  • qps: 300
  • burst: 300
  • objects.replicas: 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190

########################################################
# s1-config.yaml
########################################################
cat << EOF > s1-config.yaml
global:
  measurements:
    - name: none

jobs:
  - name: create-deployments
    jobType: create
    jobIterations: 300  # How many times to execute the job
    qps: 300            # Limit object creation queries per second
    burst: 300          # Maximum burst for throttle
    namespace: kube-burner-test
    namespaceLabels: {kube-burner-job: delete-me}
    waitWhenFinished: true # false
    verifyObjects: false
    preLoadImages: true # false
    preLoadPeriod: 30s # default 1m
    objects:
      - objectTemplate: s1-deployment.yaml
        replicas: 1
EOF

########################################################
# s1-deployment.yaml
########################################################
cat << EOF > s1-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deployment-{{ .Iteration}}-{{.Replica}}
  labels:
    app: test-{{ .Iteration }}-{{.Replica}}
    kube-burner-job: delete-me
spec:
  replicas: 1
  selector:
    matchLabels:
      app: test-{{ .Iteration}}-{{.Replica}}
  template:
    metadata:
      labels:
        app: test-{{ .Iteration}}-{{.Replica}}
    spec:
      containers:
        - name: nginx
          image: nginx:alpine
          ports:
            - containerPort: 80
EOF

########################################################
# 모니터링을 위해 ns, pod 새 터미널에서 실행
########################################################
watch -d 'kubectl get ns,pod -A'
watch -d 'kubectl get pod -A | grep -v " Running"'

########################################################
# Kind Kubernetes Cluster의 Control Plane Shell 접근
########################################################
docker exec -it myk8s-control-plane bash

########################################################
# kubelet config 확인 (maxPods 설정이 없으면 default 값으로 100 적용)
########################################################
cat /var/lib/kubelet/config.yaml | grep maxPods

########################################################
# maxPods 설정을 통해 limit 향상 (400)
########################################################
apt update && apt install vim -y
vim /var/lib/kubelet/config.yaml

## 추가
maxPods: 400

########################################################
# kubelet 재시작
########################################################
systemctl restart kubelet
systemctl status kubelet
exit


########################################################
# maxPods 설정 확인 (400)
########################################################
kubectl describe node | grep Capacity -A13
# Capacity:
#   cpu:                4
#   ephemeral-storage:  1055762868Ki
#   hugepages-1Gi:      0
#   hugepages-2Mi:      0
#   memory:             12250356Ki
#   pods:               400
# Allocatable:
#   cpu:                4
#   ephemeral-storage:  1055762868Ki
#   hugepages-1Gi:      0
#   hugepages-2Mi:      0
#   memory:             12250356Ki
#   pods:               400

########################################################
# 부하 실행 (문제 발생 PodCIDR 초과)
########################################################
kube-burner init -c s1-config.yaml --log-level debug

########################################################
# Pending pod 확인
########################################################
watch -d 'kubectl get pod -A | grep -v " Running"' # 해당 터미널
NAMESPACE              NAME                                                        READY   STATUS              RESTARTS   AGE
kube-burner-test-235   deployment-235-1-75d767bcdf-t5hdv                           0/1     ContainerCreating   0          3m49s
kube-burner-test-236   deployment-236-1-66d877bd57-nvqj2                           0/1     ContainerCreating   0          3m49s
kube-burner-test-237   deployment-237-1-65f747f57c-zthvs                           0/1     ContainerCreating   0          3m49s
kube-burner-test-238   deployment-238-1-897f6c6b9-ffgn6                            0/1     ContainerCreating   0          3m48s
kube-burner-test-240   deployment-240-1-d44bcd9b5-gblmb                            0/1     ContainerCreating   0          3m48s
...

########################################################
# 이벤트 확인
########################################################
kubectl describe pod -n kube-burner-test-299 | grep Events: -A5
# Events:
#   Type     Reason                  Age   From               Message
#   ----     ------                  ----  ----               -------
#   Normal   Scheduled               3m2s  default-scheduler  Successfully assigned kube-burner-test-299/deployment-299-1-55c9c9d7c7-bdsj4 to myk8s-control-plane
#   Warning  FailedCreatePodSandBox  59s   kubelet            Failed to create pod sandbox: rpc error: code = Unknown desc = failed to setup network for sandbox "489d15778ddab9adc6195a13476da3ab3dfdb36beb13f3c090177106ed7f8482": plugin type="ptp" failed (add): failed to allocate for range 0: no IP addresses available in range set: 10.244.0.1-10.244.0.254
#   Warning  FailedCreatePodSandBox  44s   kubelet            Failed to create pod sandbox: rpc error: code = Unknown desc = failed to setup network for sandbox "dfd0bd687e074e805ff246c0f0ed45a22164b361e52e14bd551c21d3288ac711": plugin type="ptp" failed (add): failed to allocate for range 0: no IP addresses available in range set: 10.244.0.1-10.244.0.254

########################################################
# PodCIDR 확인 (254개)
########################################################
kubectl describe node myk8s-control-plane | grep -i podcidr

PodCIDR:                      10.244.0.0/24
PodCIDRs:                     10.244.0.0/24

########################################################
# pod Status 별 개수 확인
########################################################
kubectl get pod -A -o jsonpath='{range .items[*]}{.status.phase}{"\n"}{end}' | sort | uniq -c

    #  56 Pending
    # 260 Running

########################################################
# hostNetwork를 사용하는 Pod 확인
########################################################
kubectl get pods -A -o jsonpath='{range .items[?(@.spec.hostNetwork==true)]}{.metadata.namespace}{"\t"}{.metadata.name}{"\n"}{end}'
# kube-system     etcd-myk8s-control-plane
# kube-system     kindnet-bz85p
# kube-system     kube-apiserver-myk8s-control-plane
# kube-system     kube-controller-manager-myk8s-control-plane
# kube-system     kube-proxy-vfbn7
# kube-system     kube-scheduler-myk8s-control-plane
# monitoring      kube-prometheus-stack-prometheus-node-exporter-kznm9

kubectl get pods -A -o jsonpath='{range .items[?(@.spec.hostNetwork==true)]}{.metadata.namespace}{"\t"}{.metadata.name}{"\n"}{end}' | wc -l
# 7

########################################################
# 삭제
########################################################
## deployment 는 s1-deployment.yaml 에 metadata.labels 에 추가한 labels 로 지정
## namespace 는 config.yaml 에 job.name 값을 labels 로 지정
cat << EOF > s1-config-delete.yaml
# global:
#   measurements:
#     - name: none

jobs:
  - name: delete-deployments-namespace
    qps: 500
    burst: 500
    namespace: kube-burner-test
    jobType: delete
    waitWhenFinished: true
    objects:
    - kind: Deployment
      labelSelector: {kube-burner-job: delete-me}
      apiVersion: apps/v1
    - kind: Namespace
      labelSelector: {kube-burner-job: delete-me}
EOF

kube-burner init -c s1-config-delete.yaml --log-level debug

/24 대역에서 위 3개는 할당 불가이므로 사용 가능한 Pod IP는 253개입니다. (hostNetwork 파드는 이 계산에서 제외)

  • 10.244.0.0 (첫 번째 주소: /24 네트워크의 네트워크 주소. 라우팅 식별용)
  • 10.244.0.1 (두 번째 주소: CNI Bridge Gateway가 사용하는 주소)
  • 10.244.0.255 (마지막 주소: /24의 브로드캐스트 주소)

6. 마무리

Kube-burner로 단시간에 1개, 150개, 300개의 Pod를 생성해 클러스터에 부하를 가해 보았습니다. 그 과정에서 단일 노드 환경에서는 maxPods 상한과 PodCIDR 크기가 병목이 되어 일부 파드가 Pending에 머무를 수 있음을 확인했습니다.

7. Reference

궁금하신 점이나 추가해야 할 부분은 댓글이나 아래의 링크를 통해 문의해주세요.
Written with KKamJi

Kubernetes
kubernetes devops cilium cilium-study kube-burner performance
This post is licensed under CC BY 4.0 by the author.
