Cilium 구성요소 & 배포하기 (kube-proxy replacement) [Cilium Study 1주차]
저번 시간에 Cilium에 대해 알아보았습니다. 이번에는 Cilium의 구성요소에 대해 알아본 뒤, Helm을 통해 Cilium을 배포하면서 kube-proxy를 대체해 사용해보도록 하겠습니다.
관련 글
- Vagrant와 VirtualBox로 Kubernetes 클러스터 구축하기 [Cilium Study 1주차]
- Flannel CNI 배포하기 [Cilium Study 1주차]
- Cilium CNI 알아보기 [Cilium Study 1주차]
Cilium 구성 요소

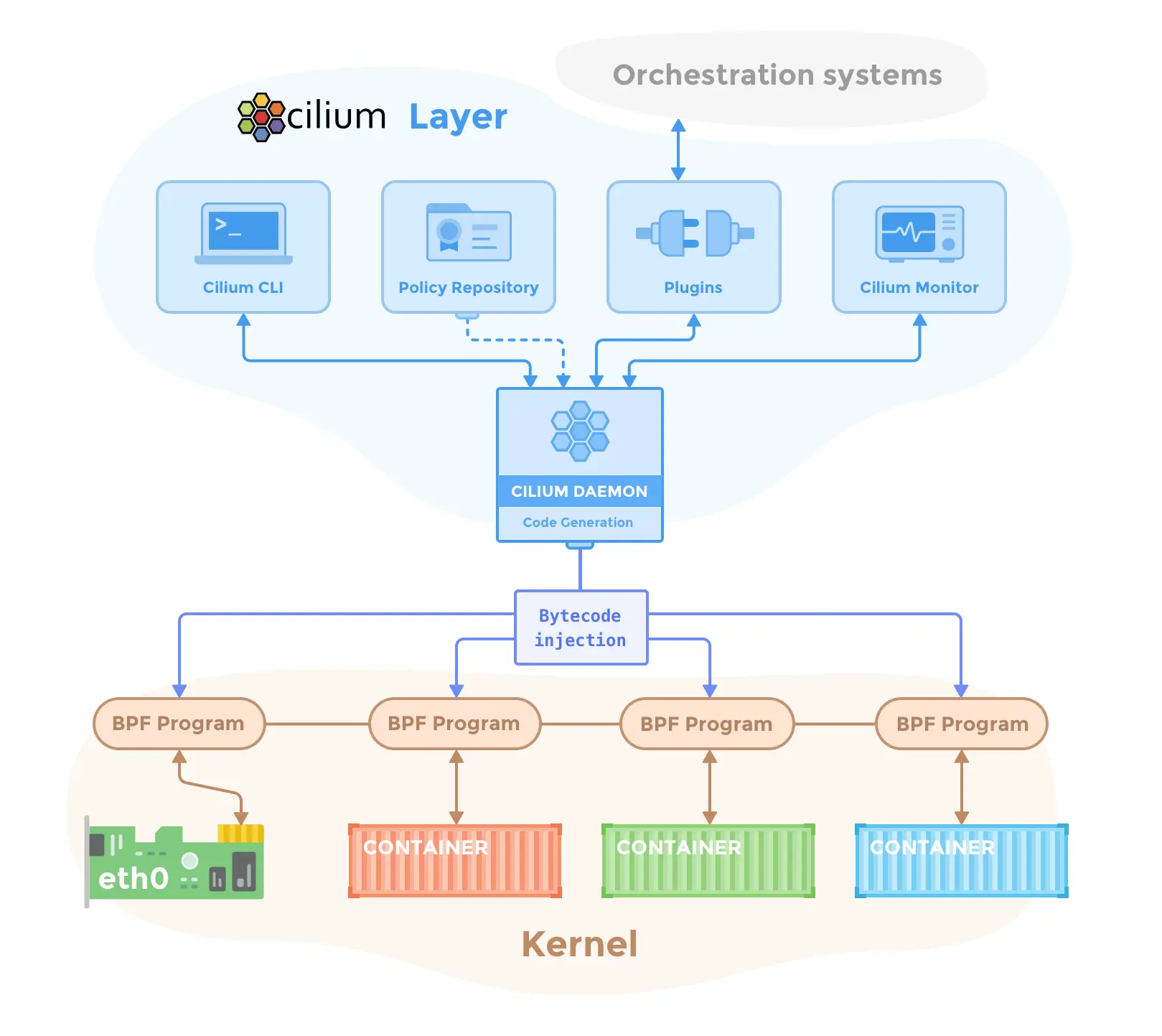

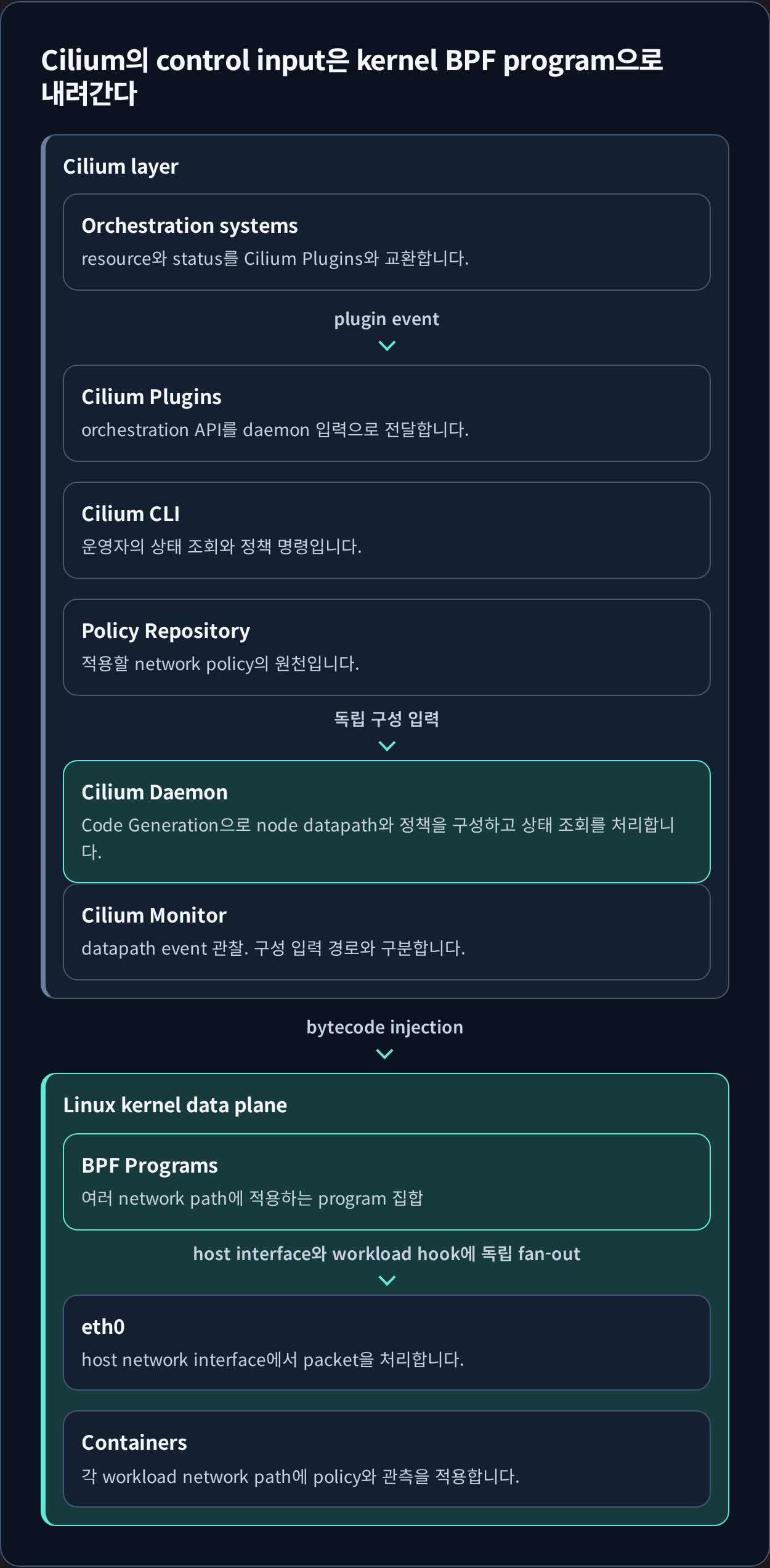

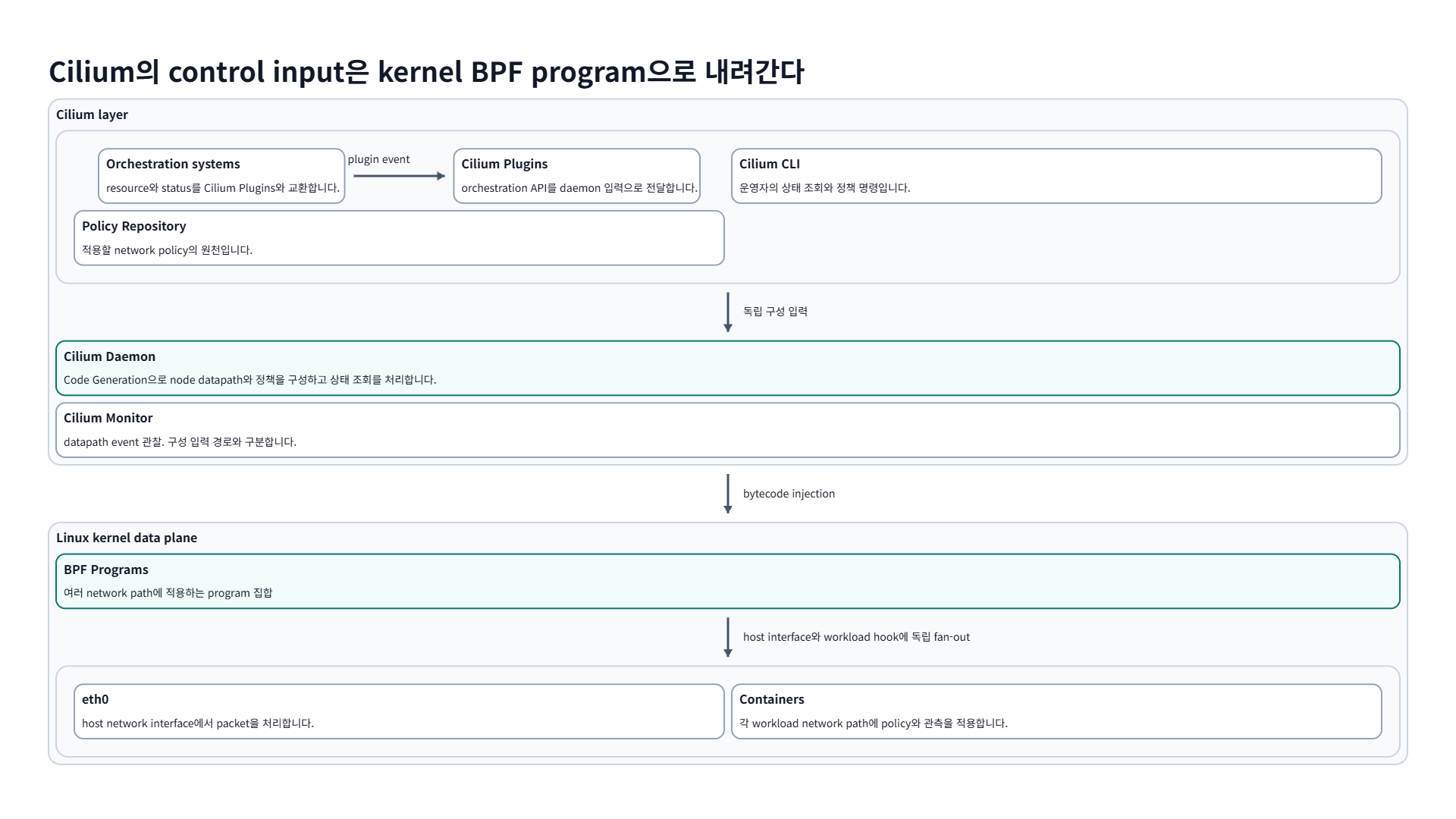

출처 - https://docs.cilium.io/en/stable/overview/component-overview/
Cilium은 크게 Cilium Operator, Cilium Agent, Cilium Client, Hubble, DataStore 로 나뉘며 각 구성 요소들은 다음과 같이 동작합니다.
1. Cilium Operator
클러스터 전역에 하나 또는 고가용성을 위해 2~3대 정도로 배포되는 구성요소로, 노드별 에이전트가 아닌 클러스터 전체적인 작업을 담당합니다. 예를 들어 Pod IP 할당(IPAM), 노드 간 라우팅 정보 관리, kvstore(ETCD 등)와의 연동을 처리합니다
2. Cilium Agent
데몬셋으로 실행되어 각 노드에서 Kubernetes와 상호작용합니다. NetworkPolicy, Service 등의 리소스를 감지하고 이를 기반으로 eBPF 프로그램 및 맵을 구성하여 Pod 사이의 모든 트래픽을 제어합니다. 예를 들어 새로운 Pod가 생성되면 에이전트는 해당 Pod 네트워크 네임스페이스에 eBPF hook을 설정하고 필요한 경로 설정, 정책맵 초기화를 수행합니다.
3. Cilium Client (CLI)
Cilium은 관리용 CLI 도구(cilium CLI)를 제공하여 설치, 상태 점검, 문제 해결 등을 지원합니다. 또한 각 노드 에이전트와 통신하는 디버그 CLI(cilium-dbg)를 통해 로컬 eBPF 맵 상태 등을 점검할 수 있습니다.
4. Hubble (Option)
Hubble은 Cilium에 통합된 네트워크 가시성/모니터링 모듈로서, 각 노드의 Cilium 에이전트에 내장된 Hubble 서버를 통해 eBPF로 수집된 플로우 데이터를 gRPC API로 제공합니다. 추가로 Hubble Relay를 배포하면 각 노드의 Hubble 서버와 연결되어 클러스터 전체의 플로우를 집계하며, 여기에 CLI나 Hubble UI 웹 인터페이스를 연결해 실시간 서비스 맵과 흐름 추적을 시각화할 수 있습니다.
5. Data Store
Cilium Agent 간의 상태를 저장하고 전파하기 위해 사용되는 데이터 저장소입니다. Cilium은 에이전트 간 보안 ID·라우팅·정책 메타데이터를 전파하기 위해 다음과 같이 두 가지 방식을 지원합니다.
-
Kubernetes CRD (
default):별도 인프라 없이 쿠버네티스 API 서버(etcd)에 바로 저장합니다. 설치가 가장 간단하며, 일반적인 규모의 클러스터(수천 노드 미만)에서는 이 방법만으로 충분합니다. -
Key‑Value Store (
etcd): 대규모-멀티클러스터 환경에서 성능 최적화를 위해 사용할 수 있습니다. CRD와 병행해 하이브리드 모드로도 운영 가능하며, 실서비스에서는 3 Node 이상 HA 구성을 권장합니다.
System Requirements 확인
Cilium을 배포하기 전, 현재 시스템이 Cilium의 최소 요구사항을 충족하는지 확인해보도록 하겠습니다. Cilium의 최소 요구사항은 다음과 같습니다.
- Hosts with either AMD64 or AArch64 architecture
- Linux kernel >= 5.4 or equivalent (e.g., 4.18 on RHEL 8.6)
CPU Architecture, Kerner Version & Options 확인
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
###############################################
## 1. Architecture Check
###############################################
❯ arch
x86_64 #AMD64
###############################################
## 2. Kernel Version Check
###############################################
❯ uname -r
6.8.0-53-generic # >= 5.4
###############################################
## 3. Kernel Configuration Options Check (check-cilium-kernel-cfg.sh)
###############################################
---
#!/usr/bin/env bash
# ==== Cilium Kernel Config Checker ====
#
# Script to check kernel configuration for Cilium.
#
# Status Legend:
# [OK] builtin: Kernel built-in
# [OK] module loaded: Module is loaded
# [WARN] module not loaded: Module is not loaded (needs modprobe)
# [FAIL] absent: Not included in kernel (requires kernel recompile or HWE kernel)
CFG="/boot/config-$(uname -r)"
[[ -f $CFG ]] || { echo "Kernel config file ($CFG) not found"; exit 1; }
# ==== Map kernel config options to module names ====
declare -A MODMAP=(
# ==== eBPF ====
[CONFIG_NET_CLS_BPF]=cls_bpf
[CONFIG_NET_SCH_INGRESS]=sch_ingress
[CONFIG_CRYPTO_USER_API_HASH]=algif_hash
# ==== Iptables-based Masquerading ====
[CONFIG_NETFILTER_XT_SET]=xt_set
[CONFIG_IP_SET]=ip_set
[CONFIG_IP_SET_HASH_IP]=ip_set_hash_ip
[CONFIG_NETFILTER_XT_MATCH_COMMENT]=xt_comment
[CONFIG_NETFILTER_XT_TARGET_TPROXY]=xt_TPROXY
[CONFIG_NETFILTER_XT_TARGET_MARK]=xt_mark
[CONFIG_NETFILTER_XT_TARGET_CT]=xt_CT
[CONFIG_NETFILTER_XT_MATCH_MARK]=xt_mark
[CONFIG_NETFILTER_XT_MATCH_SOCKET]=xt_socket
# ==== Bandwidth Manager ====
[CONFIG_NET_SCH_FQ]=sch_fq
# ==== Netkit Device Mode ====
[CONFIG_NETKIT]=netkit
# ==== IPsec ====
[CONFIG_XFRM_ALGO]=xfrm_algo
[CONFIG_XFRM_USER]=xfrm_user
[CONFIG_INET_ESP]=esp4
[CONFIG_INET6_ESP]=esp6
[CONFIG_INET_IPCOMP]=ipcomp
[CONFIG_INET6_IPCOMP]=ipcomp6
[CONFIG_INET_XFRM_TUNNEL]=xfrm4_tunnel
[CONFIG_INET6_XFRM_TUNNEL]=xfrm6_tunnel
[CONFIG_INET_TUNNEL]=tunnel4
[CONFIG_INET6_TUNNEL]=tunnel6
)
# ==== Required Kernel Options ====
OPTS=(
# ==== eBPF ====
CONFIG_BPF CONFIG_BPF_SYSCALL CONFIG_NET_CLS_BPF CONFIG_BPF_JIT
CONFIG_NET_CLS_ACT CONFIG_NET_SCH_INGRESS CONFIG_CRYPTO_SHA1
CONFIG_CRYPTO_USER_API_HASH CONFIG_CGROUPS CONFIG_CGROUP_BPF
CONFIG_PERF_EVENTS CONFIG_SCHEDSTATS
# ==== Iptables-based Masquerading ====
CONFIG_NETFILTER_XT_SET CONFIG_IP_SET CONFIG_IP_SET_HASH_IP
CONFIG_NETFILTER_XT_MATCH_COMMENT
# ==== Tunneling and Routing ====
CONFIG_VXLAN CONFIG_GENEVE CONFIG_FIB_RULES
# ==== L7 and FQDN Policies ====
CONFIG_NETFILTER_XT_TARGET_TPROXY CONFIG_NETFILTER_XT_TARGET_MARK
CONFIG_NETFILTER_XT_TARGET_CT CONFIG_NETFILTER_XT_MATCH_MARK
CONFIG_NETFILTER_XT_MATCH_SOCKET
# ==== IPsec ====
CONFIG_XFRM CONFIG_XFRM_OFFLOAD CONFIG_XFRM_STATISTICS
CONFIG_XFRM_ALGO CONFIG_XFRM_USER CONFIG_INET_ESP CONFIG_INET6_ESP
CONFIG_INET_IPCOMP CONFIG_INET6_IPCOMP CONFIG_INET_XFRM_TUNNEL
CONFIG_INET6_XFRM_TUNNEL CONFIG_INET_TUNNEL CONFIG_INET6_TUNNEL
CONFIG_INET_XFRM_MODE_TUNNEL CONFIG_CRYPTO_AEAD CONFIG_CRYPTO_AEAD2
CONFIG_CRYPTO_GCM CONFIG_CRYPTO_SEQIV CONFIG_CRYPTO_CBC
CONFIG_CRYPTO_HMAC CONFIG_CRYPTO_SHA256 CONFIG_CRYPTO_AES
# ==== Bandwidth Manager ====
CONFIG_NET_SCH_FQ
# ==== Netkit Device Mode ====
CONFIG_NETKIT
)
# ==== Check Kernel Config ====
echo "Checking Cilium kernel options for kernel $(uname -r)"
for opt in "${OPTS[@]}"; do
mod=${MODMAP[$opt]:-${opt#CONFIG_}}
if grep -q "^$opt=y" "$CFG"; then
printf " [OK] %-35s builtin\n" "$opt"
elif grep -q "^$opt=m" "$CFG"; then
if lsmod | grep -qw "$mod"; then
printf " [OK] %-35s module loaded\n" "$opt"
else
printf " [WARN] %-35s module not loaded\n" "$opt"
fi
else
printf " [FAIL] %-35s absent\n" "$opt"
fi
done
---
❯ bash check-cilium-kernel-cfg.sh
Cilium 요구 커널 옵션 점검 (kernel 6.8.0-53-generic)
[OK] CONFIG_BPF (builtin)
[OK] CONFIG_BPF_SYSCALL (builtin)
[OK] CONFIG_NET_CLS_BPF (module loaded)
[OK] CONFIG_BPF_JIT (builtin)
[OK] CONFIG_NET_CLS_ACT (builtin)
[OK] CONFIG_NET_SCH_INGRESS (module loaded)
[OK] CONFIG_CRYPTO_SHA1 (builtin)
[OK] CONFIG_CRYPTO_USER_API_HASH (module loaded)
[OK] CONFIG_CGROUPS (builtin)
[OK] CONFIG_CGROUP_BPF (builtin)
[OK] CONFIG_PERF_EVENTS (builtin)
[OK] CONFIG_SCHEDSTATS (builtin)
...
...
Kernel Versions for Advanced Features
| Cilium Feature | Minimum Kernel Version |
|---|---|
| WireGuard Transparent Encryption | >= 5.6 |
| Full support for Session Affinity | >= 5.7 |
| BPF-based proxy redirection | >= 5.7 |
| Socket-level LB bypass in pod netns | >= 5.7 |
| L3 devices | >= 5.8 |
| BPF-based host routing | >= 5.10 |
| Multicast Support in Cilium (Beta) (AMD64) | >= 5.10 |
| IPv6 BIG TCP support | >= 5.19 |
| Multicast Support in Cilium (Beta) (AArch64) | >= 6.0 |
| IPv4 BIG TCP support | >= 6.3 |
Cilium 배포하기 (Without kube-proxy)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
# Node Status 확인 (현재 CNI 미 설치 상태 => NotRunning)
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES kube-system coredns-674b8bbfcf-7g6qk 0/1 Pending 0 15m <none> <none> <none> <none>
kube-system coredns-674b8bbfcf-t46dz 0/1 Pending 0 15m <none> <none> <none> <none>
kube-system etcd-cilium-m1 1/1 Running 0 15m 192.168.10.100 cilium-m1 <none> <none>
kube-system kube-apiserver-cilium-m1 1/1 Running 0 15m 192.168.10.100 cilium-m1 <none> <none>
kube-system kube-controller-manager-cilium-m1 1/1 Running 0 15m 192.168.10.100 cilium-m1 <none> <none>
kube-system kube-proxy-clkg2 1/1 Running 0 13m 192.168.10.101 cilium-w1 <none> <none>
kube-system kube-proxy-njvtk 1/1 Running 0 15m 192.168.10.100 cilium-m1 <none> <none>
kube-system kube-proxy-szkxb 1/1 Running 0 11m 192.168.10.102 cilium-w2 <none> <none>
kube-system kube-scheduler-cilium-m1 1/1 Running 0 15m 192.168.10.100 cilium-m1 <none> <none>
# Pod Status 확인
❯ k get po -o wide -A
NAMESPACE NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
kube-system coredns-674b8bbfcf-7g6qk 0/1 Pending 0 16m <none> <none> <none> <none>
kube-system coredns-674b8bbfcf-t46dz 0/1 Pending 0 16m <none> <none> <none> <none>
kube-system etcd-cilium-m1 1/1 Running 0 16m 192.168.10.100 cilium-m1 <none> <none>
kube-system kube-apiserver-cilium-m1 1/1 Running 0 16m 192.168.10.100 cilium-m1 <none> <none>
kube-system kube-controller-manager-cilium-m1 1/1 Running 0 16m 192.168.10.100 cilium-m1 <none> <none>
kube-system kube-proxy-clkg2 1/1 Running 0 14m 192.168.10.101 cilium-w1 <none> <none>
kube-system kube-proxy-njvtk 1/1 Running 0 16m 192.168.10.100 cilium-m1 <none> <none>
kube-system kube-proxy-szkxb 1/1 Running 0 12m 192.168.10.102 cilium-w2 <none> <none>
kube-system kube-scheduler-cilium-m1 1/1 Running 0 16m 192.168.10.100 cilium-m1 <none> <none>
# 기존 kube-proxy 제거
❯ kubectl -n kube-system delete ds kube-proxy
❯ kubectl -n kube-system delete cm kube-proxy
# Cilium 설치 with Helm
❯ helm repo add cilium https://helm.cilium.io/
# 모든 NIC 지정 + bpf.masquerade=true + NoIptablesRules
❯ helm install cilium cilium/cilium --version 1.17.5 --namespace kube-system \
--set k8sServiceHost=192.168.10.100 --set k8sServicePort=6443 \
--set kubeProxyReplacement=true \
--set routingMode=native \
--set autoDirectNodeRoutes=true \
--set ipam.mode="cluster-pool" \
--set ipam.operator.clusterPoolIPv4PodCIDRList={"172.20.0.0/16"} \
--set ipv4NativeRoutingCIDR=172.20.0.0/16 \
--set endpointRoutes.enabled=true \
--set installNoConntrackIptablesRules=true \
--set bpf.masquerade=true \
--set ipv6.enabled=false
# Value 및 배포 확인
❯ helm get values cilium -n kube-system
USER-SUPPLIED VALUES:
autoDirectNodeRoutes: true
bpf:
masquerade: true
endpointRoutes:
enabled: true
installNoConntrackIptablesRules: true
ipam:
mode: cluster-pool
operator:
clusterPoolIPv4PodCIDRList:
- 172.20.0.0/16
ipv4NativeRoutingCIDR: 172.20.0.0/16
ipv6:
enabled: false
k8sServiceHost: 192.168.10.100
k8sServicePort: 6443
kubeProxyReplacement: true
routingMode: native
❯ helm list -A
NAME NAMESPACE REVISION UPDATED STATUS CHART APP VERSION
cilium kube-system 1 2025-07-20 05:59:47.929229605 +0900 KST deployedcilium-1.17.5 1.17.5
❯ kubectl get crd
NAME CREATED AT
ciliumcidrgroups.cilium.io 2025-07-19T21:01:35Z
ciliumclusterwidenetworkpolicies.cilium.io 2025-07-19T21:01:35Z
ciliumendpoints.cilium.io 2025-07-19T21:01:35Z
ciliumexternalworkloads.cilium.io 2025-07-19T21:01:35Z
ciliumidentities.cilium.io 2025-07-19T21:01:35Z
ciliuml2announcementpolicies.cilium.io 2025-07-19T21:01:35Z
ciliumloadbalancerippools.cilium.io 2025-07-19T21:01:35Z
ciliumnetworkpolicies.cilium.io 2025-07-19T21:01:35Z
ciliumnodeconfigs.cilium.io 2025-07-19T21:01:35Z
ciliumnodes.cilium.io 2025-07-19T21:01:35Z
ciliumpodippools.cilium.io 2025-07-19T21:01:35Z
❯ watch -d kubectl get pod -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system cilium-5xkzn 1/1 Running 0 2m12s
kube-system cilium-envoy-nhg9g 1/1 Running 0 2m12s
kube-system cilium-envoy-pqnnx 1/1 Running 0 2m12s
kube-system cilium-envoy-qmlpt 1/1 Running 0 2m12s
kube-system cilium-nddsq 1/1 Running 0 2m12s
kube-system cilium-operator-865bc7f457-f74mb 1/1 Running 0 2m12s
kube-system cilium-operator-865bc7f457-z8vxs 1/1 Running 0 2m12s
kube-system cilium-xts8r 1/1 Running 0 2m12s
kube-system coredns-674b8bbfcf-7g6qk 1/1 Running 0 26m
kube-system coredns-674b8bbfcf-t46dz 1/1 Running 0 26m
kube-system etcd-cilium-m1 1/1 Running 0 26m
kube-system kube-apiserver-cilium-m1 1/1 Running 0 26m
kube-system kube-controller-manager-cilium-m1 1/1 Running 0 26m
kube-system kube-scheduler-cilium-m1 1/1 Running 0 26m
# Cilium 상태 확인
kubectl exec -it -n kube-system ds/cilium -c cilium-agent -- cilium-dbg status --verbose
KubeProxyReplacement: True [eth0 10.0.2.15 fd17:625c:f037:2:a00:27ff:fe71:19d8 fe80::a00:27ff:fe71:19d8, eth1 192.168.10.102 fe80::a00:27ff:fed3:64b (Direct Routing)]
Routing: Network: Native Host: BPF
Masquerading: BPF [eth0, eth1] 172.20.0.0/16 [IPv4: Enabled, IPv6: Disabled]
...
...
# 노드에 iptables 확인
for i in cilium-m1 cilium-w1 cilium-w2 ; do echo ">> node : $i <<"; ssh $i sudo iptables -t nat -S ; echo; done
for i in cilium-m1 cilium-w1 cilium-w2 ; do echo ">> node : $i <<"; ssh $i sudo iptables-save ; echo; done
# ciliumnodes 확인
❯ kubectl get ciliumnodes
NAME CILIUMINTERNALIP INTERNALIP AGE
cilium-m1 172.20.0.12 192.168.10.100 14m
cilium-w1 172.20.1.69 192.168.10.101 14m
cilium-w2 172.20.2.126 192.168.10.102 14m
# PodCIDR 확인
❯ kubectl get ciliumnodes -o json | grep podCIDRs -A2
"podCIDRs": [
"172.20.0.0/24"
],
--
"podCIDRs": [
"172.20.1.0/24"
],
--
"podCIDRs": [
"172.20.2.0/24"
],
# PodCIDR IPAM 확인
❯ kubectl get nodes -o jsonpath='{range .items[*]}{.metadata.name}{"\t"}{.spec.podCIDR}{"\n"}{end}'
cilium-m1 10.244.0.0/24
cilium-w1 10.244.1.0/24
cilium-w2 10.244.2.0/24
# Sample Application 배포
cat << EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
name: webpod
spec:
replicas: 2
selector:
matchLabels:
app: webpod
template:
metadata:
labels:
app: webpod
spec:
affinity:
podAntiAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
- labelSelector:
matchExpressions:
- key: app
operator: In
values:
- sample-app
topologyKey: "kubernetes.io/hostname"
containers:
- name: webpod
image: traefik/whoami
ports:
- containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
name: webpod
labels:
app: webpod
spec:
selector:
app: webpod
ports:
- protocol: TCP
port: 80
targetPort: 80
type: ClusterIP
EOF
# cilium-m1 노드에 curl-pod 파드 배포
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
name: curl-pod
labels:
app: curl
spec:
nodeName: cilium-m1
containers:
- name: curl
image: alpine/curl
command: ["sleep", "36000"]
EOF
# pod status 확인
❯ kubectl get pod -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
curl-pod 1/1 Running 0 4m19s 172.20.0.87 cilium-m1 <none> <none>
webpod-697b545f57-bjlnx 1/1 Running 0 4m19s 172.20.2.2 cilium-w2 <none> <none>
webpod-697b545f57-lqzm9 1/1 Running 0 4m19s 172.20.1.249 cilium-w1 <none> <none>
# ciliumendpoints 확인
❯ kubectl get ciliumendpoints
NAME SECURITY IDENTITY ENDPOINT STATE IPV4 IPV6
curl-pod 3012 ready 172.20.0.87
webpod-697b545f57-bjlnx 18197 ready 172.20.2.2
webpod-697b545f57-lqzm9 18197 ready 172.20.1.249
# ciliumeendpoint list 확인
❯ kubectl exec -it -n kube-system ds/cilium -c cilium-agent -- cilium-dbg endpoint list
ENDPOINT POLICY (ingress) POLICY (egress) IDENTITY LABELS (source:key[=value]) IPv6 IPv4 STATUS
ENFORCEMENT ENFORCEMENT
234 Disabled Disabled 3012 k8s:app=curl 172.20.0.87 ready
k8s:io.cilium.k8s.namespace.labels.kubernetes.io/metadata.name=default
k8s:io.cilium.k8s.policy.cluster=default
k8s:io.cilium.k8s.policy.serviceaccount=default
k8s:io.kubernetes.pod.namespace=default
491 Disabled Disabled 4 reserved:health 172.20.0.223 ready
1059 Disabled Disabled 3176 k8s:io.cilium.k8s.namespace.labels.kubernetes.io/metadata.name=kube-system 172.20.0.24 ready
k8s:io.cilium.k8s.policy.cluster=default
k8s:io.cilium.k8s.policy.serviceaccount=coredns
k8s:io.kubernetes.pod.namespace=kube-system
k8s:k8s-app=kube-dns
1960 Disabled Disabled 3176 k8s:io.cilium.k8s.namespace.labels.kubernetes.io/metadata.name=kube-system 172.20.0.249 ready
k8s:io.cilium.k8s.policy.cluster=default
k8s:io.cilium.k8s.policy.serviceaccount=coredns
k8s:io.kubernetes.pod.namespace=kube-system
k8s:k8s-app=kube-dns
2068 Disabled Disabled 1 k8s:node-role.kubernetes.io/control-plane ready
k8s:node.kubernetes.io/exclude-from-external-load-balancers
reserved:host
# 통신 확인
for i in {1..5}; do kubectl exec curl-pod -- curl -s webpod | grep Hostname; done
Hostname: webpod-697b545f57-bjlnx
Hostname: webpod-697b545f57-lqzm9
Hostname: webpod-697b545f57-lqzm9
Hostname: webpod-697b545f57-lqzm9
Hostname: webpod-697b545f57-bjlnx
Cilium 설치 확인
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
# Cilium CLI 설치
CILIUM_CLI_VERSION=$(curl -s https://raw.githubusercontent.com/cilium/cilium-cli/main/stable.txt)
CLI_ARCH=amd64
if [ "$(uname -m)" = "aarch64" ]; then CLI_ARCH=arm64; fi
curl -L --fail --remote-name-all https://github.com/cilium/cilium-cli/releases/download/${CILIUM_CLI_VERSION}/cilium-linux-${CLI_ARCH}.tar.gz >/dev/null 2>&1
tar xzvfC cilium-linux-${CLI_ARCH}.tar.gz /usr/local/bin
rm cilium-linux-${CLI_ARCH}.tar.gz
# cilium status 확인
❯ cilium status
/¯¯\
/¯¯\__/¯¯\ Cilium: OK
\__/¯¯\__/ Operator: OK
/¯¯\__/¯¯\ Envoy DaemonSet: OK
\__/¯¯\__/ Hubble Relay: disabled
\__/ ClusterMesh: disabled
DaemonSet cilium Desired: 3, Ready: 3/3, Available: 3/3
DaemonSet cilium-envoy Desired: 3, Ready: 3/3, Available: 3/3
Deployment cilium-operator Desired: 2, Ready: 2/2, Available: 2/2
Containers: cilium Running: 3
cilium-envoy Running: 3
cilium-operator Running: 2
clustermesh-apiserver
hubble-relay
Cluster Pods: 2/2 managed by Cilium
Helm chart version: 1.17.5
Image versions cilium quay.io/cilium/cilium:v1.17.5@sha256:baf8541723ee0b72d6c489c741c81a6fdc5228940d66cb76ef5ea2ce3c639ea6: 3
cilium-envoy quay.io/cilium/cilium-envoy:v1.32.6-1749271279-0864395884b263913eac200ee2048fd985f8e626@sha256:9f69e290a7ea3d4edf9192acd81694089af048ae0d8a67fb63bd62dc1d72203e: 3
cilium-operator quay.io/cilium/operator-generic:v1.17.5@sha256:f954c97eeb1b47ed67d08cc8fb4108fb829f869373cbb3e698a7f8ef1085b09e: 2
# cilium config 확인
❯ cilium config view
❯ kubectl get cm -n kube-system cilium-config -o json | jq
# cilium debug 켜기
❯ cilium config set debug true && watch kubectl get pod -A
✨ Patching ConfigMap cilium-config with debug=true...
♻️ Restarted Cilium pods
❯ cilium config view | grep -i debug
debug true
debug-verbose
# debug 정보 확인
❯ kubectl exec -n kube-system -c cilium-agent -it ds/cilium -- cilium-dbg config
##### Read-write configurations #####
ConntrackAccounting : Disabled
ConntrackLocal : Disabled
Debug : Disabled
DebugLB : Disabled
DebugPolicy : Enabled
DropNotification : Enabled
MonitorAggregationLevel : Medium
PolicyAccounting : Enabled
PolicyAuditMode : Disabled
PolicyTracing : Disabled
PolicyVerdictNotification : Enabled
SourceIPVerification : Enabled
TraceNotification : Enabled
MonitorNumPages : 64
PolicyEnforcement : default
# debug 상세 정보 확인
❯ kubectl exec -n kube-system -c cilium-agent -it ds/cilium -- cilium-dbg status --verbose
...
KubeProxyReplacement: True [eth0 10.0.2.15 fd17:625c:f037:2:a00:27ff:fe71:19d8 fe80::a00:27ff:fe71:19d8, eth1 192.168.10.102 fe80::a00:27ff:fef6:fcbc (Direct Routing)]
Routing: Network: Native Host: BPF
Attach Mode: TCX
Device Mode: veth
Masquerading: BPF [eth0, eth1] 172.20.0.0/16 [IPv4: Enabled, IPv6: Disabled]
...
KubeProxyReplacement Details:
Status: True
Socket LB: Enabled
Socket LB Tracing: Enabled
Socket LB Coverage: Full
Devices: eth0 10.0.2.15 fd17:625c:f037:2:a00:27ff:fe71:19d8 fe80::a00:27ff:fe71:19d8, eth1 192.168.10.102 fe80::a00:27ff:fef6:fcbc (Direct Routing)
Mode: SNAT
Backend Selection: Random
Session Affinity: Enabled
Graceful Termination: Enabled
NAT46/64 Support: Disabled
XDP Acceleration: Disabled
Services:
- ClusterIP: Enabled
- NodePort: Enabled (Range: 30000-32767)
- LoadBalancer: Enabled
- externalIPs: Enabled
- HostPort: Enabled
...
궁금하신 점이나 추가해야 할 부분은 댓글이나 아래의 링크를 통해 문의해주세요.
Written with KKam._.Ji
This post is licensed under CC BY 4.0 by the author.
