Argo CD Multi Cluster Management

CloudNet@ Gasida님이 진행하는 CI/CD + ArgoCD + Vault Study를 진행하며 학습한 내용을 공유합니다.

이번 포스팅에서는 로컬 환경에서 kind를 사용하여 관리용(Management), 운영용(Production), 개발용(Development) 클러스터를 구축하고, Argo CD를 이용해 중앙에서 멀티 클러스터에 애플리케이션을 배포하는 과정을 정리해보겠습니다.

1. Overview

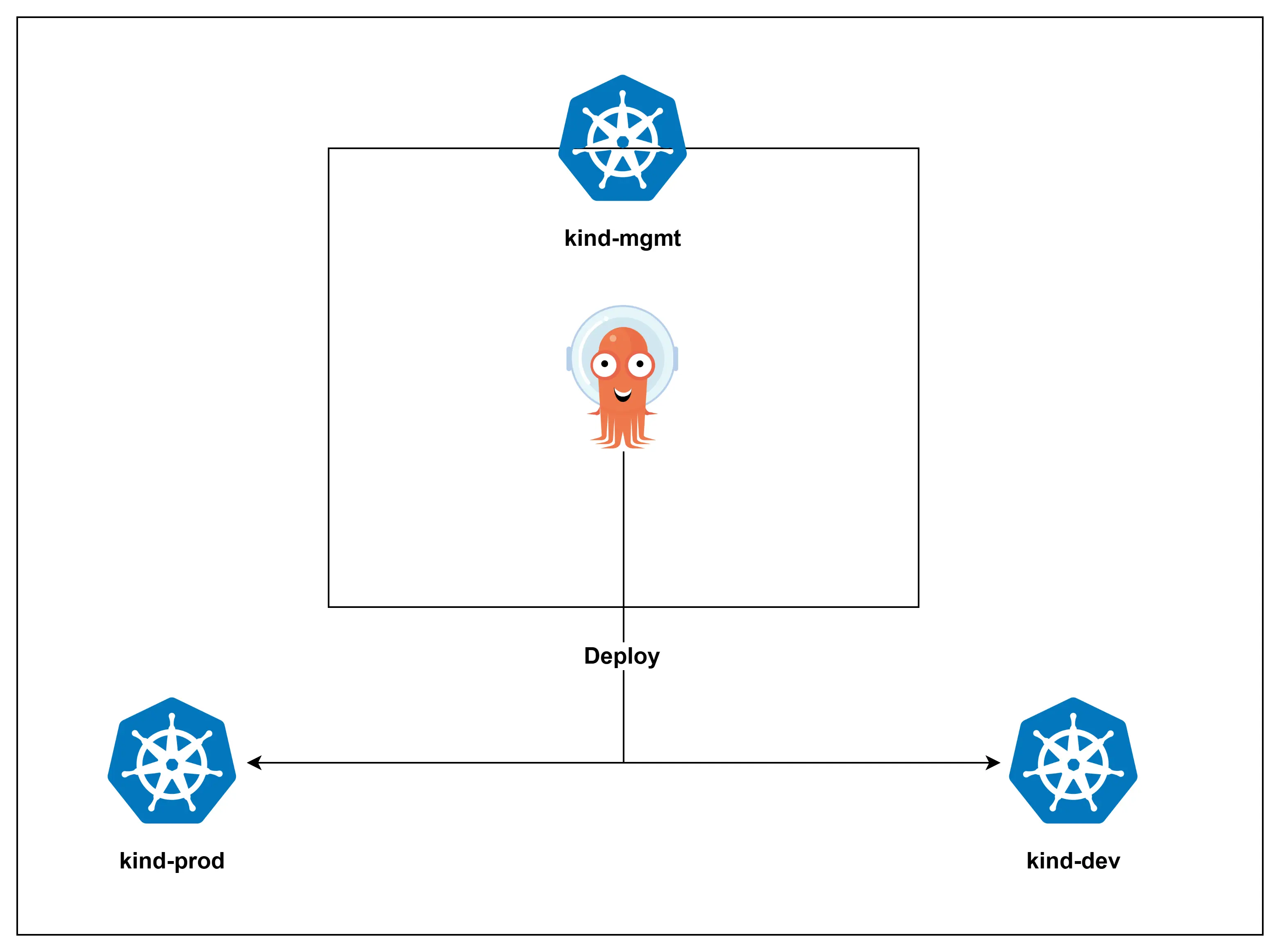

Argo CD Multi-Cluster Architecture

구조는 위와 같습니다.

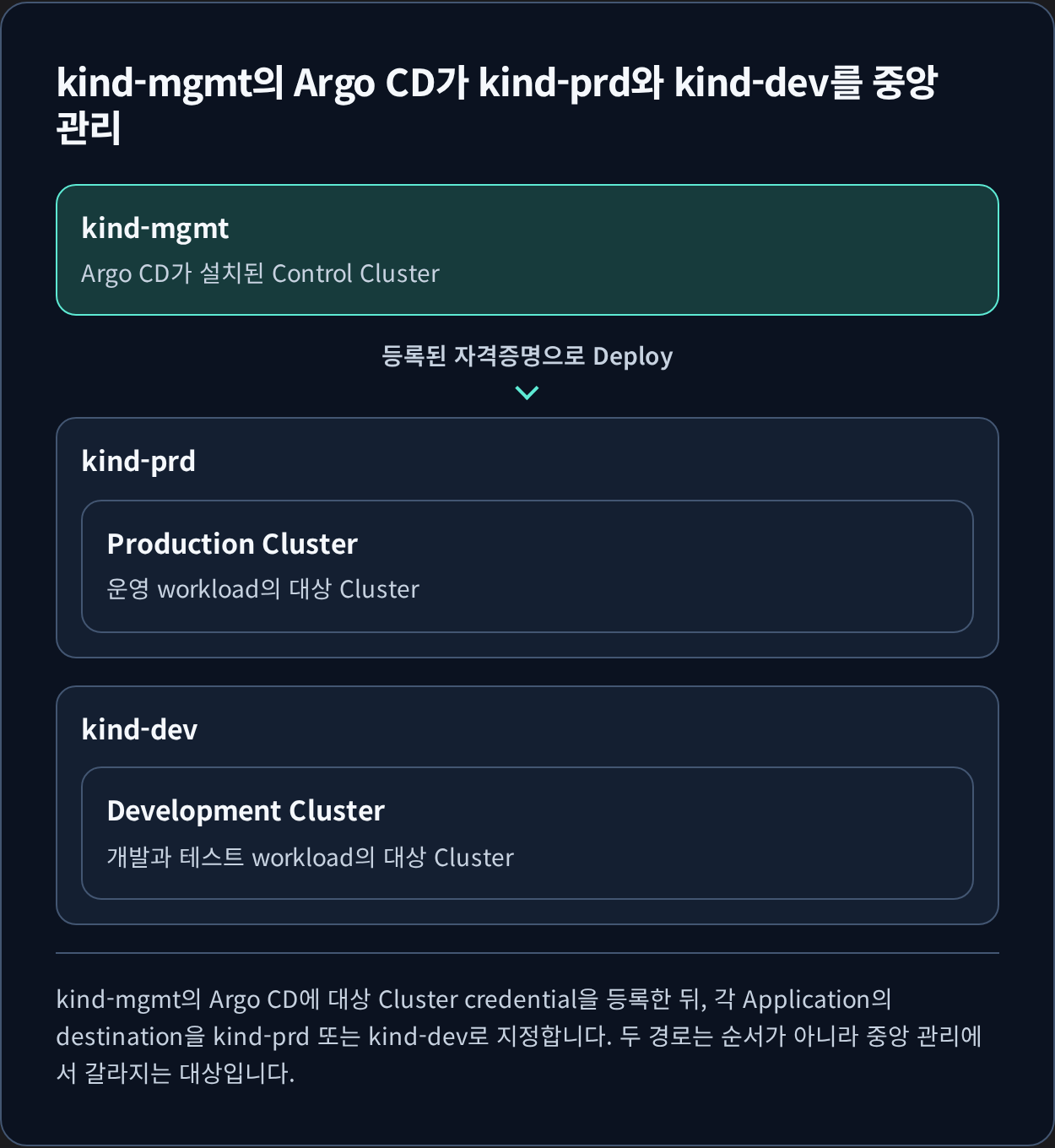

  • kind-mgmt: Argo CD가 설치되는 제어(Control) 클러스터입니다. 이곳에서 모든 배포 파이프라인을 관리
  • kind-prod: 실제 서비스가 운영된다고 가정한 운영 클러스터
  • kind-dev: 개발 및 테스트가 이루어지는 개발 클러스터

kind-mgmt에 설치된 Argo CD는 kind-prod와 kind-dev 클러스터의 자격 증명을 등록받아, Git 저장소의 변경 사항을 각 대상 클러스터로 동기화(Sync)하는 역할을 수행합니다.

2. 실습 환경 준비

2.1. kind-mgmt Cluster 배포 및 세팅

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

##############################################################
# kind-mgmt Cluster 배포 (Argo CD 30000번 포트 노출)
##############################################################
kind create cluster --name mgmt --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  labels:
    ingress-ready: true
  extraPortMappings:
  - containerPort: 30000 # ArgoCD UI 접근을 위한 포트
    hostPort: 30000
  - containerPort: 31001
    hostPort: 31001
EOF

##############################################################
# argocd namespace 생성
##############################################################
kubectl create ns argocd

##############################################################
# argocd-values.yaml 생성
##############################################################
cat <<EOF > argocd-values.yaml
server:
  service:
    type: NodePort
    nodePortHttps: 30000
  extraArgs:
    - --insecure
EOF

##############################################################
# Argo CD 설치 v3.1.9
##############################################################
helm repo add argo https://argoproj.github.io/argo-helm
helm install argocd argo/argo-cd --version 9.0.5 -f argocd-values.yaml --namespace argocd



##############################################################
# 접속 확인
##############################################################
curl -vk http://localhost:30000/

##############################################################
# 최초 접속 암호 확인
##############################################################
kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d ;echo
# pOHBR5nTi2hx6RvY

ARGOPW=<최초 접속 암호>
ARGOPW=pOHBR5nTi2hx6RvY

##############################################################
# argocd 서버 cli 로그인
##############################################################
argocd login localhost:30000 --insecure --username admin --password $ARGOPW
# WARNING: server is not configured with TLS. Proceed (y/n)? y
# 'admin:login' logged in successfully
# Context 'localhost:30000' updated

##############################################################
# 확인
##############################################################
argocd cluster list
argocd proj list
argocd account list

##############################################################
# admin 계정 암호 변경 : qwe12345
##############################################################
argocd account update-password --current-password $ARGOPW --new-password qwe12345

##############################################################
# Argo CD 웹 접속 주소 확인 : admin 계정 / qwe12345
##############################################################
open "http://localhost:30000/"

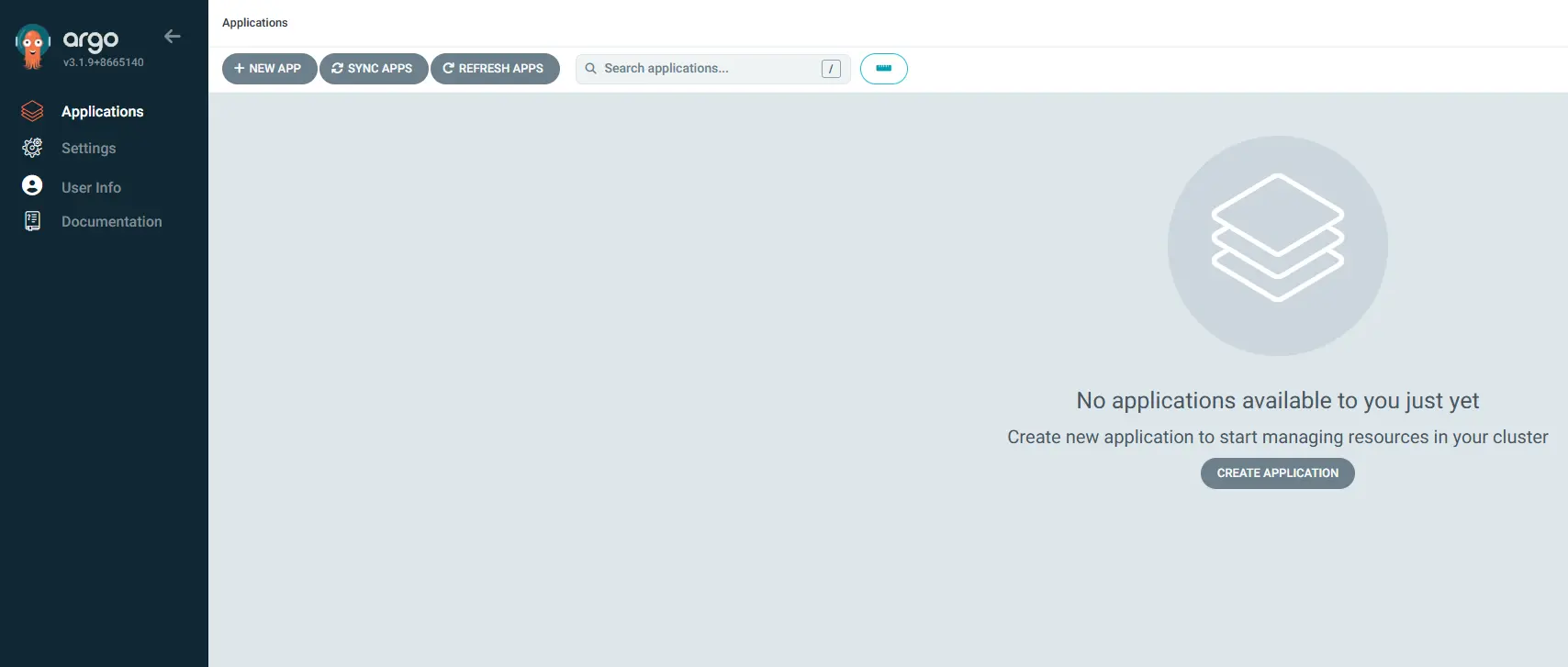

Argo CD Main Login Check kind-mgmt

2.2. kind-prod, kind-dev Cluster 배포 및 kubeconfig 파일 수정

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101

##############################################################
# 설치 전 확인
##############################################################
kubectl config get-contexts
# CURRENT   NAME        CLUSTER         AUTHINFO           NAMESPACE
# *         kind-mgmt   kind-mgmt       kind-mgmt

##############################################################
# 도커 네트워크 확인 : mgmt 컨테이너 IP 확인
##############################################################
docker network ls
docker network inspect kind | jq

##############################################################
# kind k8s 배포
##############################################################
kind create cluster --name dev --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 31002
    hostPort: 31002
EOF

kind create cluster --name prd --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 31003
    hostPort: 31003
EOF


##############################################################
# 설치 후 확인
##############################################################
kubectl config get-contexts
CURRENT   NAME        CLUSTER     AUTHINFO    NAMESPACE
          kind-dev    kind-dev    kind-dev
          kind-mgmt   kind-mgmt   kind-mgmt
*         kind-prd    kind-prd    kind-prd

##############################################################
# mgmt k8s 자격증명 변경
##############################################################
kubectl config use-context kind-mgmt
kubectl config get-contexts
# CURRENT   NAME        CLUSTER         AUTHINFO           NAMESPACE
#           kind-dev    kind-dev        kind-dev
# *         kind-mgmt   kind-mgmt       kind-mgmt
#           kind-prd    kind-prd        kind-prd

##############################################################
# kubectl 접근 여부 확인 (node 및 pod 확인)
##############################################################
kubectl get node -v=6 --context kind-mgmt
kubectl get node -v=6 --context kind-dev
kubectl get node -v=6 --context kind-prd
cat ~/.kube/config

kubectl get pod -A --context kind-mgmt
kubectl get pod -A --context kind-dev
kubectl get pod -A --context kind-prd

##############################################################
# alias 설정
##############################################################
alias k8s1='kubectl --context kind-mgmt'
alias k8s2='kubectl --context kind-dev'
alias k8s3='kubectl --context kind-prd'

##############################################################
# alias 확인
##############################################################
k8s1 get node -owide
k8s2 get node -owide
k8s3 get node -owide


##############################################################
# 도커 네트워크 확인 : 컨테이너 IP 확인
##############################################################
docker network inspect kind | grep -E 'Name|IPv4Address'
        # "Name": "kind",
        #         "Name": "dev-control-plane",
        #         "IPv4Address": "172.18.0.3/16",
        #         "Name": "mgmt-control-plane",
        #         "IPv4Address": "172.18.0.2/16",
        #         "Name": "prd-control-plane",
        #         "IPv4Address": "172.18.0.4/16",

##############################################################
# 도메인 통신 확인 : 물론 IP 통신도 가능
##############################################################
docker ps # k8s-api 6443 포트 포워딩 확인
docker exec -it mgmt-control-plane curl -sk https://dev-control-plane:6443/version
docker exec -it mgmt-control-plane curl -sk https://prd-control-plane:6443/version

2.3. Argo CD에 다른 K8s 클러스터 추가

2.3.1. Cluster Add Script (register-cluster.sh)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

# ==========================================
# 1. 환경 변수 설정
# ==========================================
# 대상 클러스터 (Argo CD에 등록될 클러스터 및 주소)
TARGET_CONTEXT="kind-dev"
TARGET_INTERNAL_URL="https://dev-control-plane:6443" # ArgoCD가 접속할 내부 주소
CLUSTER_NAME_IN_ARGO="dev-cluster"

# ArgoCD가 설치된 클러스터
ARGOCD_CONTEXT="kind-mgmt"
ARGOCD_NAMESPACE="argocd"

echo "[${TARGET_CONTEXT}] 클러스터를 [${ARGOCD_CONTEXT}]의 ArgoCD에 등록을 시작합니다..."

# ==========================================
# 2. 대상 클러스터에 ServiceAccount 및 RBAC 생성
# ==========================================
cat <<EOF | kubectl --context="${TARGET_CONTEXT}" apply -f -
apiVersion: v1
kind: ServiceAccount
metadata:
  name: argocd-manager
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: argocd-manager-role
rules:
- apiGroups: ["*"]
  resources: ["*"]
  verbs: ["*"]
- nonResourceURLs: ["*"]
  verbs: ["*"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: argocd-manager-role-binding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: argocd-manager-role
subjects:
- kind: ServiceAccount
  name: argocd-manager
  namespace: kube-system
EOF

# ==========================================
# 3. 토큰 시크릿 생성 (Long Live Token)
# ==========================================
cat <<EOF | kubectl --context="${TARGET_CONTEXT}" apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: argocd-manager-token
  namespace: kube-system
  annotations:
    kubernetes.io/service-account.name: argocd-manager
type: kubernetes.io/service-account-token
EOF

echo "⏳ 토큰 생성을 대기 중..."
sleep 2

# ==========================================
# 4. 토큰 및 CA 인증서 추출
# ==========================================
BEARER_TOKEN=$(kubectl --context="${TARGET_CONTEXT}" -n kube-system get secret argocd-manager-token -o jsonpath='{.data.token}' | base64 -d)
CA_DATA=$(kubectl --context="${TARGET_CONTEXT}" -n kube-system get secret argocd-manager-token -o jsonpath='{.data.ca\.crt}')

# ==========================================
# 5. ArgoCD 클러스터(mgmt)에 Secret 등록
# ==========================================
cat <<EOF | kubectl --context="${ARGOCD_CONTEXT}" apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: cluster-${CLUSTER_NAME_IN_ARGO}
  namespace: ${ARGOCD_NAMESPACE}
  labels:
    argocd.argoproj.io/secret-type: cluster
    name: ${CLUSTER_NAME_IN_ARGO}
type: Opaque
stringData:
  name: ${CLUSTER_NAME_IN_ARGO}
  server: ${TARGET_INTERNAL_URL}
  config: |
    {
      "bearerToken": "${BEARER_TOKEN}",
      "tlsClientConfig": {
        "insecure": false,
        "caData": "${CA_DATA}"
      }
    }
EOF

echo "등록 완료! ArgoCD에서 확인해주세요."

2.3.2. Dev Cluster 추가

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89

##############################################################
# ArgoCD cluster list 확인
##############################################################
argocd cluster list
argocd cluster list -o json | jq

kubectl get secret -n argocd
# NAME                           TYPE                 DATA   AGE
# argocd-initial-admin-secret    Opaque               1      43m
# argocd-notifications-secret    Opaque               0      43m
# argocd-redis                   Opaque               1      43m
# argocd-secret                  Opaque               3      43m
# sh.helm.release.v1.argocd.v1   helm.sh/release.v1   1      43m
kubectl get secret -n argocd argocd-secret -o jsonpath='{.data}' | jq

##############################################################
# argocd-manager service account 확인
##############################################################
k8s2 get sa -n kube-system
k8s2 get sa -n kube-system | grep argo | wc -l
# 0
k8s3 get sa -n kube-system
k8s3 get sa -n kube-system | grep argo | wc -l
# 0

##############################################################
# ArgoCD cluster 등록
##############################################################
bash register-cluster.sh
# [kind-dev] 클러스터를 [kind-mgmt]의 ArgoCD에 등록을 시작합니다...
# Warning: resource serviceaccounts/argocd-manager is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
# serviceaccount/argocd-manager configured
# Warning: resource clusterroles/argocd-manager-role is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
# clusterrole.rbac.authorization.k8s.io/argocd-manager-role configured
# Warning: resource clusterrolebindings/argocd-manager-role-binding is missing the kubectl.kubernetes.io/last-applied-configuration annotation which is required by kubectl apply. kubectl apply should only be used on resources created declaratively by either kubectl create --save-config or kubectl apply. The missing annotation will be patched automatically.
# clusterrolebinding.rbac.authorization.k8s.io/argocd-manager-role-binding configured
# secret/argocd-manager-token unchanged
# ⏳ 토큰 생성을 대기 중...
# secret/cluster-dev-cluster created
# 등록 완료! ArgoCD에서 확인해주세요.

##############################################################
# argocd-manager 권한 확인
##############################################################
k8s2 get sa -n kube-system argocd-manager
kubectl rolesum -n kube-system argocd-manager --context kind-dev
# • [CRB] */argocd-manager-role-binding ⟶  [CR] */argocd-manager-role
#   Resource  Name  Exclude  Verbs  G L W C U P D DC
#   *.*       [*]     [-]     [-]   ✔ ✔ ✔ ✔ ✔ ✔ ✔ ✔

##############################################################
# ArgoCD에 등록된 클러스터 확인 (Label을 이용하여 필터링)
##############################################################
# 클러스터 자격증명은 시크릿에 저장되고, 해당 시크릿에 반드시 argocd.argoproj.io/secret-type=cluster Label이 필요함
kubectl get secret -n argocd -l argocd.argoproj.io/secret-type=cluster

##############################################################
# k9s 에서 data 내용 확인
##############################################################
# k9s -> : secret argocd -> 아래 secret 에서 d (Describe) -> x (Toggle Decode) 로 확인

Name:         cluster-dev-cluster
Namespace:    argocd
Labels:       argocd.argoproj.io/secret-type=cluster
              name=dev-cluster
Annotations:  <none>

Type:  Opaque

Data
====
config: {
  "bearerToken": "eyJhbGciOiJSUzI1NiIsImtpZCI6Ild3Y05sWkVLeEl4czN0djFsUHFzOEd2ZUhQb0ZMeTJJLWpGVkpOZExuYW8ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhcmdvY2QtbWFuYWdlci10b2tlbiIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50Lm5hbWUiOiJhcmdvY2QtbWFuYWdlciIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VydmljZS1hY2NvdW50LnVpZCI6ImJkM2VhYWJkLTc3MzItNDEyMi1iZmZiLTZjNjNkMjkwMjJjNCIsInN1YiI6InN5c3RlbTpzZXJ2aWNlYWNjb3VudDprdWJlLXN5c3RlbTphcmdvY2QtbWFuYWdlciJ9.UQvopJ2aoc-g9hdcN9HYLQOm3iUb-lufnS68Vn-pNIBxq0gztp3qhIM7A61-bN7VNcb22aiuKw6LnaWGkwyj8Qrngc8K3NUoU6XGi7VWHG1ORsTiPsucOqxjfbpIC30Dvmz2L8XDSEg44EC3_puBBTt_EvyT5ZMUn525GrfvicLQgRyzbZNsRfB41WpwThLzp4_3mfF5kEGz-Z8uiMt43g3u5q0xFUwryhUG0s9MtB2N9-5YuFpoyboSVCjYR376Ga1awAh7JexyajWbLOfS992E8viRC9NjveDIwlQyA3Nlf4IW2YR-k7i-XKvYE9gBRn5gySgiDcWUR76fiEiXoQ",
  "tlsClientConfig": {
    "insecure": false,
    "caData": "LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURCVENDQWUyZ0F3SUJBZ0lJS245SWNCV2cwZHN3RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TlRFeE1qSXdNakkxTWpGYUZ3MHpOVEV4TWpBd01qTXdNakZhTUJVeApFekFSQmdOVkJBTVRDbXQxWW1WeWJtVjBaWE13Z2dFaU1BMEdDU3FHU0liM0RRRUJBUVVBQTRJQkR3QXdnZ0VLCkFvSUJBUUM5R1gxVERiOVZIRCtsSmR4d0hsOVpkTGYrRURza0NDMWdGMmdPbkxKQ3NyQlhLR0Y1ZjhXZDZxejUKYTg3N1J2US9iazBUZ1pyOFZBdWUzOFM1WEtwVU4wOEFTU0ExRTgvcEtleS9pMHRjYStZY29YWFJSN1pVM0l1ago2SGhxdy9RdU93eDVLMGNDRmd4TVZpSE1kcjNmYzNqVTRpb0ZOUURwN24rbXpyZDBVTTVRR09WVUU3Q0JGeFg1CkpOTWZvQlRxYldLdjlhQVVrZW0vS0dKMisxR2JrU01wUXpnQVREaVJ0ekhxQitQMEV1UEdiSGhyWCs5WkNEMGgKQmpkcmVDSHY1eWQzVWhWbkx4eHhXbFMwNHFTT0hGZTBWdGh4dk9rOFRXeE9zS3c0Q0xqY2ovYjN3SmYwKzNGcApVdXF4ZmkvTEhhcTFsQWNveFV2U0U1T0lUWjNMQWdNQkFBR2pXVEJYTUE0R0ExVWREd0VCL3dRRUF3SUNwREFQCkJnTlZIUk1CQWY4RUJUQURBUUgvTUIwR0ExVWREZ1FXQkJUYkdUMnNvenBWOTdrNS96clpBaXFXdUw2ZWpUQVYKQmdOVkhSRUVEakFNZ2dwcmRXSmxjbTVsZEdWek1BMEdDU3FHU0liM0RRRUJDd1VBQTRJQkFRQWxwbHF3WWQwRwpncTd1ZFMvZmFpWmh0YmprV0gyaDZRWWpqOXg3cXByelp3UmRHMDdvMGVzV0F0ZkF4YmhuaEtZaXVrdDBLN2hQCmtFQVIwcjhGS0d2aStEdmliTzVLSjkrOTB2bkRMQ1haV0FLc2NleG11N0VwNENwWVZ4eFNDZmhYQUZSdUdlanMKVXBTeXp5RnZ4a3VGMEhuSk1heHJmMmJPNERnV21PVlRvSHdwa3ZYQngvUXdSeERlblRHUkZiN0lrTWJhaFJZRgo5aFI4cXExNkJZbTJ0TVhpTzI1NDV3QjQrOEtYNFEzSjQwMkxoZjhTVEM5Y3R6bEw5OHpiL3h1TTV4bndzZDF2CjF2MDlIU1R5eWt6dlhPQXgxYlMxaHFzKzdEaHIrNW9WbTY1dGNpbXhNc24wMHZnSURaQzY3VmZqNTFQYURsNWIKY0JNdk5lS0FSRndMCi0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K"
  }
}
name: dev-cluster
server: https://dev-control-plane:6443

##############################################################
# Cluster 등록 확인
##############################################################
argocd cluster list -o json | jq
argocd cluster list
# SERVER                          NAME         VERSION  STATUS   MESSAGE                                                  PROJECT
# https://dev-control-plane:6443  dev-cluster           Unknown  Cluster has no applications and is not being monitored.
# https://kubernetes.default.svc  in-cluster            Unknown  Cluster has no applications and is not being monitored.

2.4. Prod Cluser 추가

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53

##############################################################
# register-cluster.sh 파일 수정 아래와 같이 수정 후 실행
##############################################################
# ==========================================
# 1. 환경 변수 설정
# ==========================================
# 대상 클러스터 (Argo CD에 등록될 클러스터 및 주소)
TARGET_CONTEXT="kind-prd"
TARGET_INTERNAL_URL="https://prd-control-plane:6443" # ArgoCD가 접속할 내부 주소
CLUSTER_NAME_IN_ARGO="prd-cluster"

# ArgoCD가 설치된 클러스터
ARGOCD_CONTEXT="kind-mgmt"
ARGOCD_NAMESPACE="argocd"

echo "[${TARGET_CONTEXT}] 클러스터를 [${ARGOCD_CONTEXT}]의 ArgoCD에 등록을 시작합니다..."

##############################################################
# register-cluster.sh 파일 수정 아래와 같이 수정 후 실행
##############################################################
bash register-cluster.sh
# [kind-prd] 클러스터를 [kind-mgmt]의 ArgoCD에 등록을 시작합니다...
# serviceaccount/argocd-manager created
# clusterrole.rbac.authorization.k8s.io/argocd-manager-role created
# clusterrolebinding.rbac.authorization.k8s.io/argocd-manager-role-binding created
# secret/argocd-manager-token created
# ⏳ 토큰 생성을 대기 중...
# secret/cluster-prd-cluster created
# 등록 완료! ArgoCD에서 확인해주세요.

##############################################################
# argocd-manager service account 확인
##############################################################
k8s3 get sa -n kube-system argocd-manager
# NAME             SECRETS   AGE
# argocd-manager   0         2m9s

##############################################################
# ArgoCD에 등록된 클러스터 확인 (Label을 이용하여 필터링)
##############################################################
kubectl get secret -n argocd -l argocd.argoproj.io/secret-type=cluster
# NAME                  TYPE     DATA   AGE
# cluster-dev-cluster   Opaque   3      18m
# cluster-prd-cluster   Opaque   3      116s

##############################################################
# Cluster 등록 확인
##############################################################
argocd cluster list
# SERVER                          NAME         VERSION  STATUS   MESSAGE                                                  PROJECT
# https://dev-control-plane:6443  dev-cluster           Unknown  Cluster has no applications and is not being monitored.
# https://prd-control-plane:6443  prd-cluster           Unknown  Cluster has no applications and is not being monitored.
# https://kubernetes.default.svc  in-cluster            Unknown  Cluster has no applications and is not being monitored.

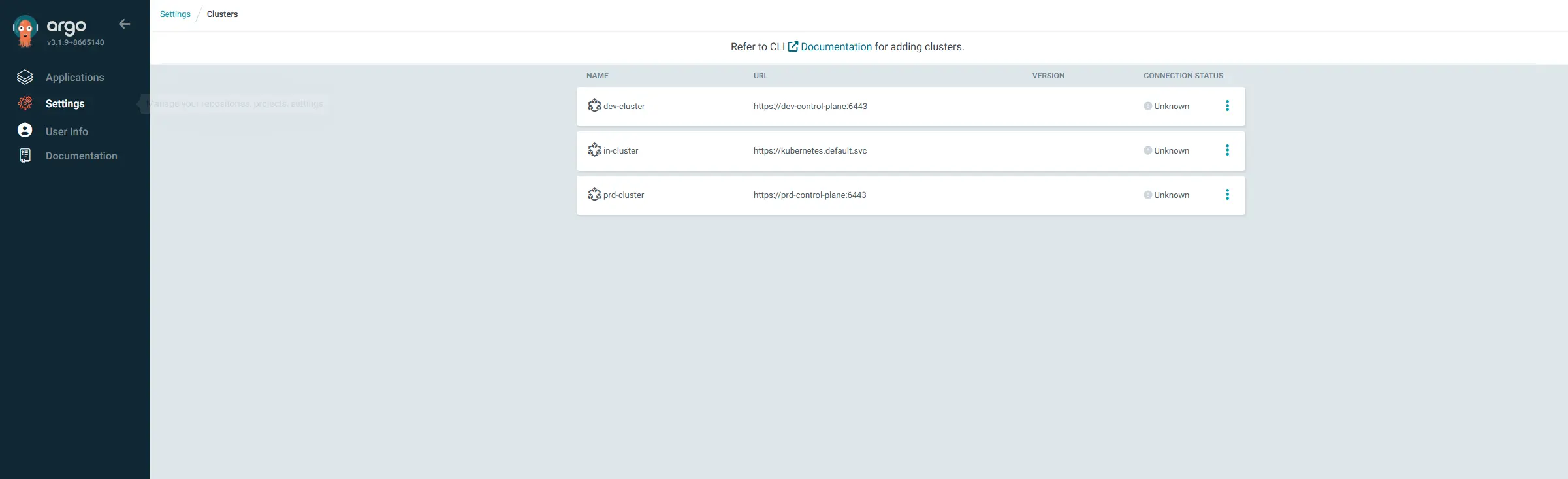

ArgoCD Cluster Add Check

3. nginx helm chart 생성 후 GitHub에 Push

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172

##############################################################
# 디렉토리 생성
##############################################################
mkdir nginx-chart
cd nginx-chart

mkdir templates

##############################################################
# ConfigMap 생성
##############################################################
cat > templates/configmap.yaml <<EOF
apiVersion: v1
kind: ConfigMap
metadata:
  name:
data:
  index.html: |

EOF

##############################################################
# Deployment 생성
##############################################################
cat > templates/deployment.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name:
spec:
  replicas:
  selector:
    matchLabels:
      app:
  template:
    metadata:
      labels:
        app:
    spec:
      containers:
      - name: nginx
        image: :
        ports:
        - containerPort: 80
        volumeMounts:
        - name: index-html
          mountPath: /usr/share/nginx/html/index.html
          subPath: index.html
      volumes:
      - name: index-html
        configMap:
          name:
EOF

##############################################################
# Service 생성
##############################################################
cat > templates/service.yaml <<EOF
apiVersion: v1
kind: Service
metadata:
  name:
spec:
  selector:
    app:
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80
    nodePort:
  type: NodePort
EOF

##############################################################
# values.yaml 생성 (Mgmt Cluster 용)
##############################################################
cat > values.yaml <<EOF
indexHtml: |
  <!DOCTYPE html>
  <html>
  <head>
    <title>Welcome to Nginx!</title>
  </head>
  <body>
    <h1>Hello, Kubernetes!</h1>
    <p>Nginx version 1.26.1</p>
  </body>
  </html>

image:
  repository: nginx
  tag: 1.26.1

replicaCount: 1

nodePort: 31001
EOF

##############################################################
# values-dev.yaml 생성 (Dev Cluster 용)
##############################################################
cat > values-dev.yaml <<EOF
indexHtml: |
  <!DOCTYPE html>
  <html>
  <head>
    <title>Welcome to Nginx!</title>
  </head>
  <body>
    <h1>Hello, Dev - Kubernetes!</h1>
    <p>Nginx version 1.26.1</p>
  </body>
  </html>

image:
  repository: nginx
  tag: 1.26.1

replicaCount: 1

nodePort: 31002
EOF

##############################################################
# values-prd.yaml 생성 (Prd Cluster 용)
##############################################################
cat > values-prd.yaml <<EOF
indexHtml: |
  <!DOCTYPE html>
  <html>
  <head>
    <title>Welcome to Nginx!</title>
  </head>
  <body>
    <h1>Hello, Prd - Kubernetes!</h1>
    <p>Nginx version 1.26.1</p>
  </body>
  </html>

image:
  repository: nginx
  tag: 1.26.1

replicaCount: 2

nodePort: 31003
EOF

##############################################################
# Chart.yaml 생성
##############################################################
cat > Chart.yaml <<EOF
apiVersion: v2
name: nginx-chart
description: A Helm chart for deploying Nginx with custom index.html
type: application
version: 1.0.0
appVersion: "1.26.1"
EOF

##############################################################
# GitHub Push
##############################################################
git add . && git commit -m "Add sample yaml" && git push -u origin main


##############################################################
# 헬름 렌더링 확인
##############################################################
helm template mgmt-nginx . -f values.yaml
helm template dev-nginx . -f values-dev.yaml
helm template prd-nginx . -f values-prd.yaml

4. Argo CD로 3개의 Kubernetes Cluster에 각각 Nginx 배포

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132

##############################################################
# Cluster IP(FQDN) 변수 설정
##############################################################
DEVK8SIP=dev-control-plane
PRDK8SIP=prd-control-plane
echo $DEVK8SIP $PRDK8SIP

##############################################################
# argocd app 배포
##############################################################
cat <<EOF | kubectl apply -f -
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: mgmt-nginx
  namespace: argocd
  finalizers:
  - resources-finalizer.argocd.argoproj.io
spec:
  project: default
  source:
    helm:
      valueFiles:
      - values.yaml
    path: study/ci-cd-study/6w-3-of-3-argocd/nginx-chart
    repoURL: https://github.com/KKamJi98/kkamji-lab
    targetRevision: HEAD
  syncPolicy:
    automated:
      prune: true
    syncOptions:
    - CreateNamespace=true
  destination:
    namespace: mgmt-nginx
    server: https://kubernetes.default.svc
EOF

cat <<EOF | kubectl apply -f -
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: dev-nginx
  namespace: argocd
  finalizers:
  - resources-finalizer.argocd.argoproj.io
spec:
  project: default
  source:
    helm:
      valueFiles:
      - values-dev.yaml
    path: study/ci-cd-study/6w-3-of-3-argocd/nginx-chart
    repoURL: https://github.com/KKamJi98/kkamji-lab
    targetRevision: HEAD
  syncPolicy:
    automated:
      prune: true
    syncOptions:
    - CreateNamespace=true
  destination:
    namespace: dev-nginx
    server: https://$DEVK8SIP:6443
EOF

cat <<EOF | kubectl apply -f -
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: prd-nginx
  namespace: argocd
  finalizers:
  - resources-finalizer.argocd.argoproj.io
spec:
  project: default
  source:
    helm:
      valueFiles:
      - values-prd.yaml
    path: study/ci-cd-study/6w-3-of-3-argocd/nginx-chart
    repoURL: https://github.com/KKamJi98/kkamji-lab
    targetRevision: HEAD
  syncPolicy:
    automated:
      prune: true
    syncOptions:
    - CreateNamespace=true
  destination:
    namespace: prd-nginx
    server: https://$PRDK8SIP:6443
EOF

##############################################################
# ArgoCD App 확인
##############################################################
argocd app list
# NAME               CLUSTER                         NAMESPACE   PROJECT  STATUS  HEALTH   SYNCPOLICY  CONDITIONS  REPO                                    PATH                                            TARGET
# argocd/dev-nginx   https://dev-control-plane:6443  dev-nginx   default  Synced  Healthy  Auto-Prune  <none>      https://github.com/KKamJi98/kkamji-lab  study/ci-cd-study/6w-3-of-3-argocd/nginx-chart  HEAD
# argocd/mgmt-nginx  https://kubernetes.default.svc  mgmt-nginx  default  Synced  Healthy  Auto-Prune  <none>      https://github.com/KKamJi98/kkamji-lab  study/ci-cd-study/6w-3-of-3-argocd/nginx-chart  HEAD
# argocd/prd-nginx   https://prd-control-plane:6443  prd-nginx   default  Synced  Healthy  Auto-Prune  <none>      https://github.com/KKamJi98/kkamji-lab  study/ci-cd-study/6w-3-of-3-argocd/nginx-chart  HEAD
kubectl get applications -n argocd dev-nginx
kubectl get applications -n argocd dev-nginx -o yaml
kubectl get applications -n argocd dev-nginx -o yaml | kubectl neat | yq
kubectl describe applications -n argocd dev-nginx
kubectl get applications -n argocd
# NAME         SYNC STATUS   HEALTH STATUS
# dev-nginx    Synced        Healthy
# mgmt-nginx   Synced        Healthy
# prd-nginx    Synced        Healthy

##############################################################
# mgmt
##############################################################
kubectl get pod,svc,ep,cm -n mgmt-nginx
curl -s http://127.0.0.1:31001

##############################################################
# dev
##############################################################
kubectl get pod,svc,ep,cm -n dev-nginx --context kind-dev
curl -s http://127.0.0.1:31002

##############################################################
# prd
##############################################################
kubectl get pod,svc,ep,cm -n prd-nginx --context kind-prd
curl -s http://127.0.0.1:31003

##############################################################
# Argo CD App 삭제
##############################################################
kubectl delete applications -n argocd mgmt-nginx dev-nginx prd-nginx

5. 마무리

이번 포스팅에서는 Argo CD를 사용하여 멀티 클러스터 환경을 구축하고 관리하는 방법을 실습해 보았습니다. kind를 이용해 로컬에서 관리용(Mgmt), 운영용(Prod), 개발용(Dev) 클러스터를 구성하고, Argo CD에 외부 클러스터를 등록하여 중앙에서 애플리케이션을 배포하고 관리하는 과정을 경험했습니다. 이를 통해 Argo CD가 단일 클러스터뿐만 아니라 멀티 클러스터 환경에서도 강력한 GitOps 도구로 활용될 수 있음을 확인했습니다.

6. Reference

궁금하신 점이나 추가해야 할 부분은 댓글이나 아래의 링크를 통해 문의해주세요.
Written with KKamJi

DevOps
devops ci-cd-study ci-cd-study-5w gitops kubernetes argocd cluster-management
This post is licensed under CC BY 4.0 by the author.
