Jenkins CD with Kubernetes
Jenkins CD with Kubernetes
CloudNet@ Gasida님이 진행하는 CI/CD + ArgoCD + Vault Study 를 진행하며 학습한 내용을 공유합니다.
이번 포스트에서는 Jenkins 를 사용한 CD(Continuous Delivery)과정에 대해 실습 중심으로 정리하겠습니다.
실습 환경은 Jenkins + ArgoCD 실습 환경 구축 의 실습환경을 사용합니다.
1. Jenkins 컨테이너 내부에 툴 설치 (kubectl, helm)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
##############################################################
# Jenkins Container 쉘 접근 (docker-compose.yaml 파일이 위치한 경로에서)
##############################################################
docker compose exec --privileged -u root jenkins bash
--------------------------------------------
##############################################################
# Install kubectl, helm
##############################################################
# kubectl download
#curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/arm64/kubectl" # macOS
#curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl" # Windows
curl -LO "https://dl.k8s.io/release/v1.32.8/bin/linux/arm64/kubectl" # macOS
curl -LO "https://dl.k8s.io/release/v1.32.8/bin/linux/amd64/kubectl" # Windows
install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl
kubectl version --client=true
#
curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bash
helm version
exit
--------------------------------------------
docker compose exec jenkins kubectl version --client=true
docker compose exec jenkins helm version
2. Jenkins 자격 증명 설정 (k8s-crd)
2.1. myk8s-control-plane 컨테이너 IP 확인
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
# myk8s-control-plane 컨테이너 (api-server) IP 확인
docker inspect myk8s-control-plane | grep IPAddress
# "IPAddress": "172.18.0.3",
# Jenkins 컨테이너에서 myk8s-control-plane api 호출 확인
docker exec -it jenkins curl https://172.18.0.3:6443/version -k
# {
# "major": "1",
# "minor": "32",
# "gitVersion": "v1.32.8",
# "gitCommit": "2e83bc4bf31e88b7de81d5341939d5ce2460f46f",
# "gitTreeState": "clean",
# "buildDate": "2025-08-13T14:21:22Z",
# "goVersion": "go1.23.11",
# "compiler": "gc",
# "platform": "linux/amd64"
# }
2.2. Kind Kubernetes 자격증명 설정 (k8s-crd)
- 자격증명 설정 : Jenkins 관리 -> Credentials -> System -> Globals -> Add Credentials
2.2.1. kubeconfig 파일 수정
1
2
3
4
5
6
7
8
cp ~/.kube/config .
## 현재 클러스터의 ip 내용을 아래와 같이 수정
apiVersion: v1
clusters:
- cluster:
certificate-authority-data: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURCVENDQWUyZ0F3SUJBZ0lJQTdOSnBqU3NlRm93RFFZSktvWklodmNOQVFFTEJRQXdGVEVUTUJFR0ExVUUKQXhNS2EzVmlaWEp1WlhSbGN6QWVGdzB5TlRFd01qVXdPVEUyTlRGYUZ3MHpOVEV3TWpNd09USXhOVEZhTUJVeApFekFSQmdOVkJBTVRDbXQxWW1WeWJtVjBaWE13Z2dFaU1BMEdDU3FHU0liM0RRRUJBUVVBQTRJQkR3QXdnZ0VLCkFvSUJBUURTOEcyMDVUeXQzYm1jMGtKQmtWMjMvdmV3VWp2MFlCb29yeDNhVk00UUtXdzVuWDVZOHFVSmNSa2IKUkJSc2dYaGRTWXU1RkpOblFlcE1xcEVRZjQwQXErSlZGanF4RElSL2xVejUrSWRyU2lpQ1NicGZPbHB5OU51NQoxTGNWY3JzY2VaMkpMUEovRjNIcGZPR2FROTczRXRUR3pTYkhIUVNlN0RDazBzZEN2d0xLMFQ4S1pvb240dTIrCnpsTG5BalIwcUFhTkFyWWtRdUVNaUpBb1BSMW94Sjd0TnZEaXhYNlF6R2RKOEZWYkRFQkFTUmlYcysrdzZMOVMKSzhJRTZnN2k4ZXFmSHVFM3ZWUG0xRmt3enFxcURyTXB6dEFLV2JQYlhzZEt0VERWQTdsUHdNRXNNWUF1eFpDVwpIRkFjUDRLYkZyRGNxVlY1V0ppVWRLRXdjcDU5QWdNQkFBR2pXVEJYTUE0R0ExVWREd0VCL3dRRUF3SUNwREFQCkJnTlZIUk1CQWY4RUJUQURBUUgvTUIwR0ExVWREZ1FXQkJRVDNvMkJKUHFLYXJlMmJoVVRqYTFtOWxNSDlUQVYKQmdOVkhSRUVEakFNZ2dwcmRXSmxjbTVsZEdWek1BMEdDU3FHU0liM0RRRUJDd1VBQTRJQkFRQW9nMEN0ZlgzSwpzU0pIblo3Vkgvai9CUnNCUEY2Z1hieUtJTEtNeU8vblgxejF1UEJGbklPZ0QvME4zUnJiVStYVVRQc2djTGgrCjZMY0xJSUhmNWpzRlRkL0prVDI0VXZkVzRxcnZqSWRWYU5GbS9Gcm91YkFoU1Y0UEhSMHFBaCtWODY5U1llMisKMHBUL1REVDkwNklqRzVGb2NhZlFBZkVrWUVQNEptMXhXdloxVXNFNlp3ZVVWNVUvUzZNWmVDZC9UZU1SQ0cybApwMTVLNEVWTGdlVGwzK1dCUENBYnBIK0hTa0grdi96OFY2byszYmlrMFdKOVBJZGZuUjZXeENMRDhnaTFzNGZICnpiMm9iYmt0SnlsZEpUUGNyU0wwUGhZMml3ZWtad3R3WWFJNk84aytRckdnUW5PNGp4Q0VUWVN6OVc5ekdoWGcKVW9lU09mdXBGM0hZCi0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0K
server: https://<myk8s-control-plane 컨테이너 IP>:6443 # 자신의 환경에 맞게 변경

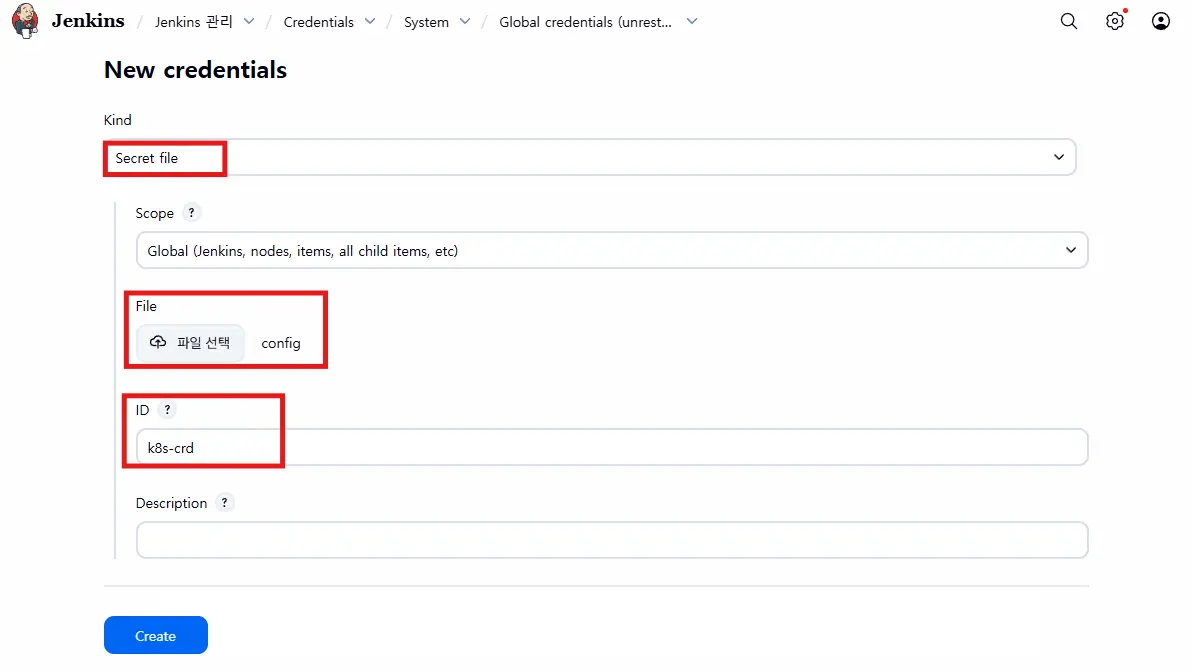

2.2.2. 수정한 kubeconfig 파일로 secret 생성
- Kind : Secret file
- File : ***
*** - ID : k8s-crd
3. Jenkins Item 생성(Pipeline)
Item name(k8s-cmd) -> 아래의 Pipeline script 입력 후 Item 생성 -> Save -> 지금 빌드
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
## Pipeline script 내용
pipeline {
agent any
environment {
KUBECONFIG = credentials('k8s-crd')
}
stages {
stage('List Pods') {
steps {
sh '''
# Fetch and display Pods
kubectl get pods -A --kubeconfig "$KUBECONFIG"
'''
}
}
}
}

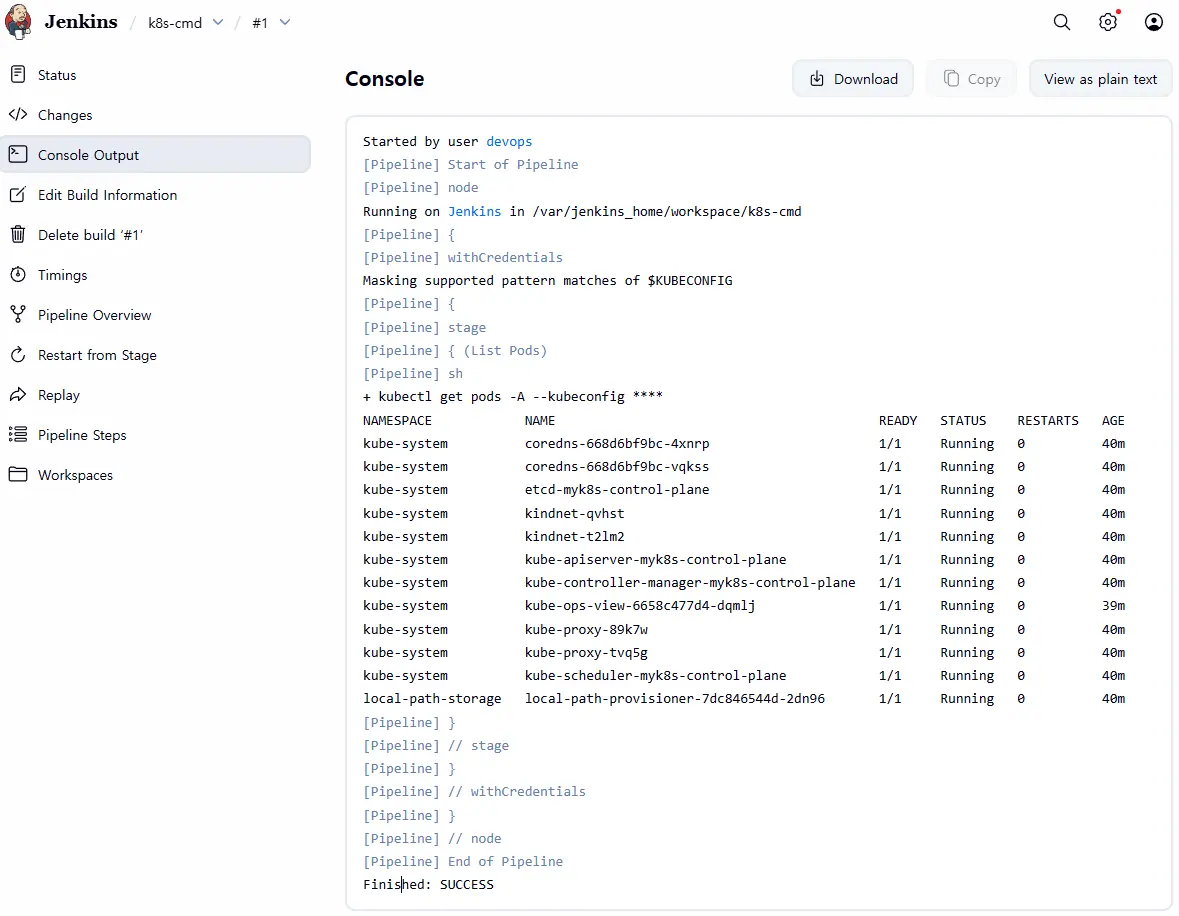

3.1. Console Output 확인
4. Jenkins 를 이용한 blue-green 배포 준비
4.1. 이전 실습에 사용된 deployment, service가 남아있는 경우 삭제
1
kubectl delete deploy,svc timeserver
4.2. Deployment, Service YAML 파일 작성 - http-echo 및 코드 push
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
##############################################################
# Gogs Container 쉘 접근 (docker-compose.yaml 파일이 위치한 경로에서)
##############################################################
docker compose exec --privileged -u root gogs bash
--------------------------------------------
##############################################################
# Deployment, Service Yaml 파일 작성 후 코드 git push
##############################################################
# dev-app 디렉토리 접근
cd /data/dev-app/
# deploy 폴더 생성
mkdir deploy
# Deployment Manifest 생성 (Blue)
cat > deploy/echo-server-blue.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: echo-server-blue
spec:
replicas: 2
selector:
matchLabels:
app: echo-server
version: blue
template:
metadata:
labels:
app: echo-server
version: blue
spec:
containers:
- name: echo-server
image: hashicorp/http-echo
args:
- "-text=Hello from Blue"
ports:
- containerPort: 5678
EOF
# Service Manifest 생성
cat > deploy/echo-server-service.yaml <<EOF
apiVersion: v1
kind: Service
metadata:
name: echo-server-service
spec:
selector:
app: echo-server
version: blue
ports:
- protocol: TCP
port: 80
targetPort: 5678
nodePort: 30000
type: NodePort
EOF
# Deployment Manifest 생성 (Green)
cat > deploy/echo-server-green.yaml <<EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: echo-server-green
spec:
replicas: 2
selector:
matchLabels:
app: echo-server
version: green
template:
metadata:
labels:
app: echo-server
version: green
spec:
containers:
- name: echo-server
image: hashicorp/http-echo
args:
- "-text=Hello from Green"
ports:
- containerPort: 5678
EOF
# 확인 후 git(gogs) push
tree
git add . && git commit -m "Add echo server yaml" && git push -u origin main
## 쉘 탈출
exit
4.3. 참고 - 직접 블루-그린 업데이트 실행 시 절차 (수동)
현재 gogs 컨테이너에 kubeconfig와 kubectl 설정이 되어있지 않아, 아래 내용은 진행이 어려우나, 설정이 되어있는 경우 아래와 같이 수동으로 blue-green 업데이트도 할 수 있습니다.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
#
cd deploy
kubectl delete deploy,svc --all
kubectl apply -f .
#
kubectl get deploy,svc,ep -owide
curl -s http://127.0.0.1:30000
#
kubectl patch svc echo-server-service -p '{"spec": {"selector": {"version": "green"}}}'
kubectl get deploy,svc,ep -owide
curl -s http://127.0.0.1:30000
#
kubectl patch svc echo-server-service -p '{"spec": {"selector": {"version": "blue"}}}'
kubectl get deploy,svc,ep -owide
curl -s http://127.0.0.1:30000
# 삭제
kubectl delete -f .
cd ..
5. Jenkins blue-green 배포 Item 생성(Pipeline)
Item name(k8s-bluegreen) -> 아래의 Pipeline script 입력 후 Item 생성 -> Save
5.1. Pipeline Script (Blue-Green)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
pipeline {
agent any
environment {
KUBECONFIG = credentials('k8s-crd')
}
stages {
stage('Checkout') {
steps {
git branch: 'main',
credentialsId: 'gogs-crd',
url: 'http://172.28.8.232:3000/devops/dev-app.git' // Git에서 코드 체크아웃
}
}
stage('container image build') {
steps {
echo "container image build"
}
}
stage('container image upload') {
steps {
echo "container image upload"
}
}
stage('k8s deployment blue version') {
steps {
sh "kubectl apply -f ./deploy/echo-server-blue.yaml --kubeconfig $KUBECONFIG"
sh "kubectl apply -f ./deploy/echo-server-service.yaml --kubeconfig $KUBECONFIG"
}
}
stage('approve green version') {
steps {
input message: 'approve green version', ok: "Yes"
}
}
stage('k8s deployment green version') {
steps {
sh "kubectl apply -f ./deploy/echo-server-green.yaml --kubeconfig $KUBECONFIG"
}
}
stage('approve version switching') {
steps {
script {
def switchApproved = input message: 'Green switching?', ok: "Yes", parameters: [booleanParam(defaultValue: true, name: 'IS_SWITCHED')]
if (switchApproved) {
sh "kubectl patch svc echo-server-service -p '{\"spec\": {\"selector\": {\"version\": \"green\"}}}' --kubeconfig $KUBECONFIG"
}
}
}
}

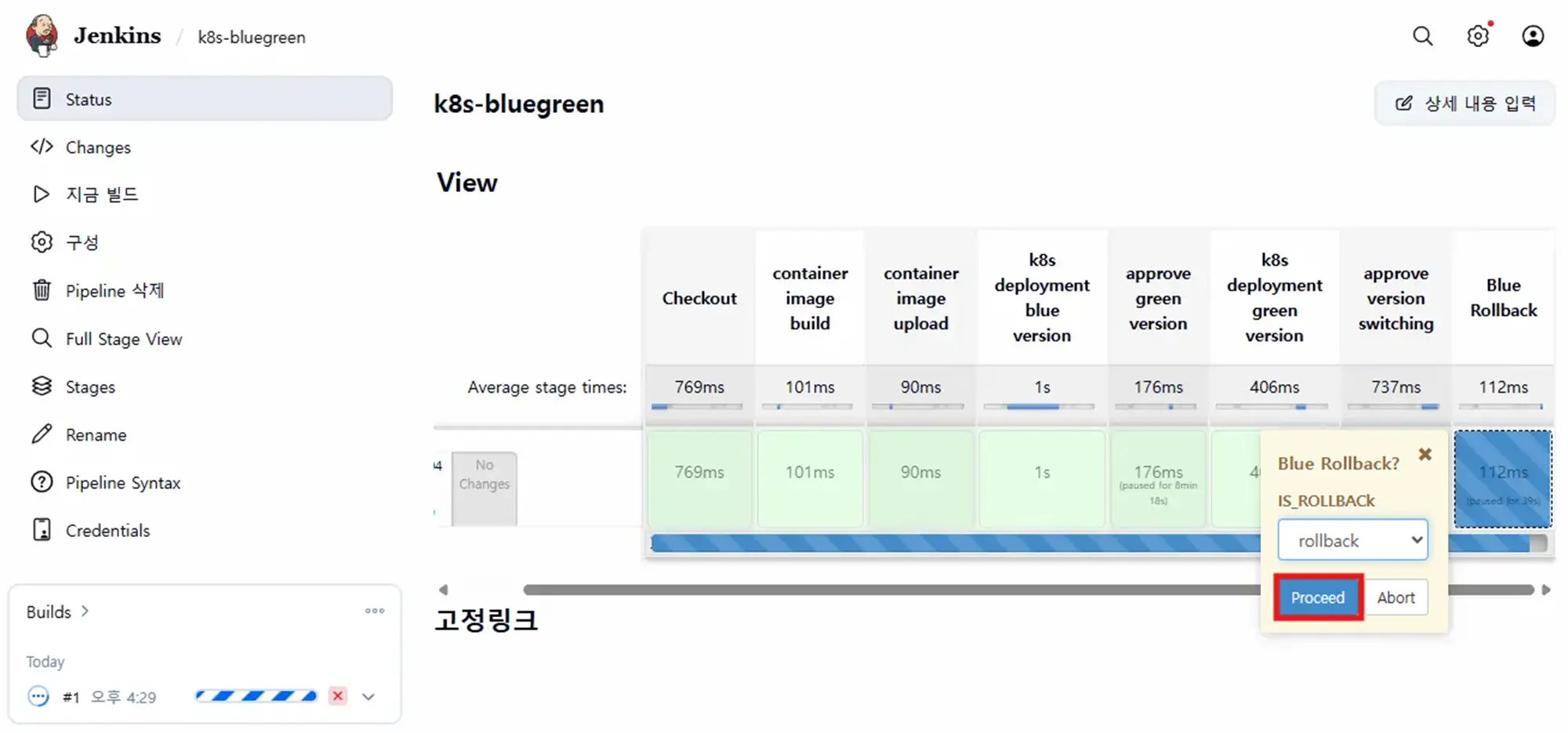

stage('Blue Rollback') {
steps {
script {
def rollbackDecision = input message: 'Blue Rollback?', parameters: [choice(choices: ['done', 'rollback'], name: 'IS_ROLLBACK')]
if (rollbackDecision == "done") {
sh "kubectl delete -f ./deploy/echo-server-blue.yaml --kubeconfig $KUBECONFIG"
}
if (rollbackDecision == "rollback") {
sh "kubectl patch svc echo-server-service -p '{\"spec\": {\"selector\": {\"version\": \"blue\"}}}' --kubeconfig $KUBECONFIG"
}
}
}
}
}
}
6. Jenkins blue-green 배포
6.1. blue green 전환 확인을 위한 반복 접속 요청 (다른 터미널)
1
2
3
while true; do curl -s --connect-timeout 1 http://127.0.0.1:30000 ; echo ; sleep 1 ; kubectl get deploy -owide ; echo ; kubectl get svc,ep echo-server-service -owide ; echo "------------" ; done
# Or
while true; do curl -s --connect-timeout 1 http://127.0.0.1:30000 ; date ; echo "------------" ; sleep 1 ; done
6.2. Pipeline 실행 (Blue-Green)
위에서 생성한 Pipeline 즉시 실행 클릭

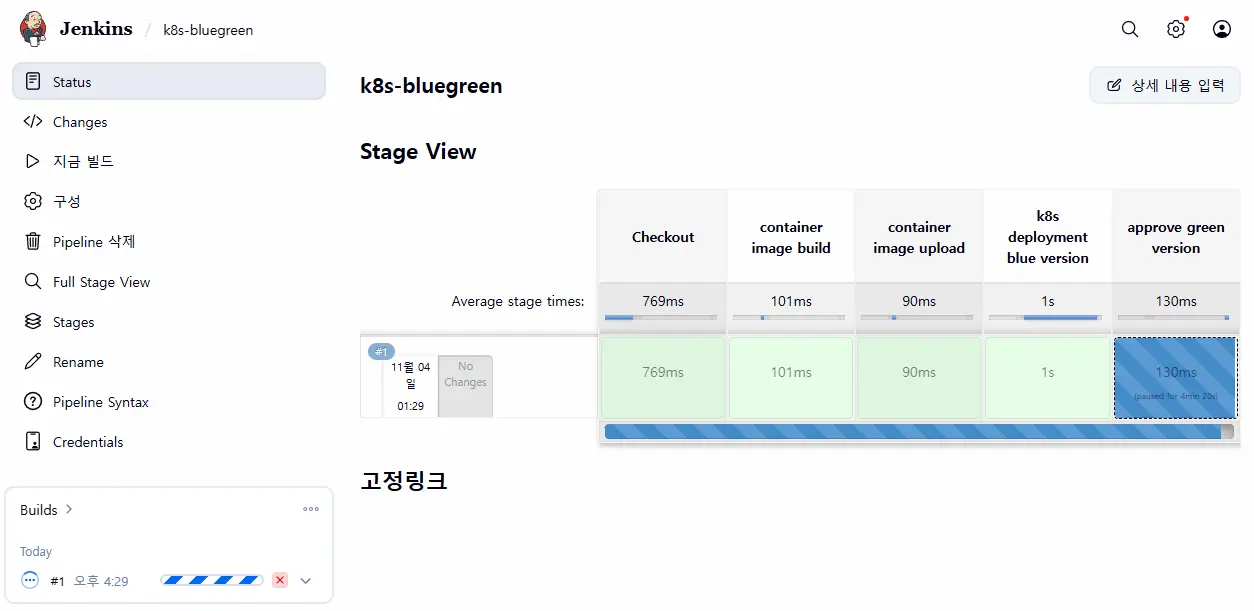

6.2.1. Blue 배포 확인
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Hello from Blue
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 19s echo-server hashicorp/http-echo app=echo-server,version=blue
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 14m app=echo-server,version=blue
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.10:5678,10.244.1.9:5678 14m
------------
Hello from Blue
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 20s echo-server hashicorp/http-echo app=echo-server,version=blue
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 14m app=echo-server,version=blue
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.10:5678,10.244.1.9:5678 14m

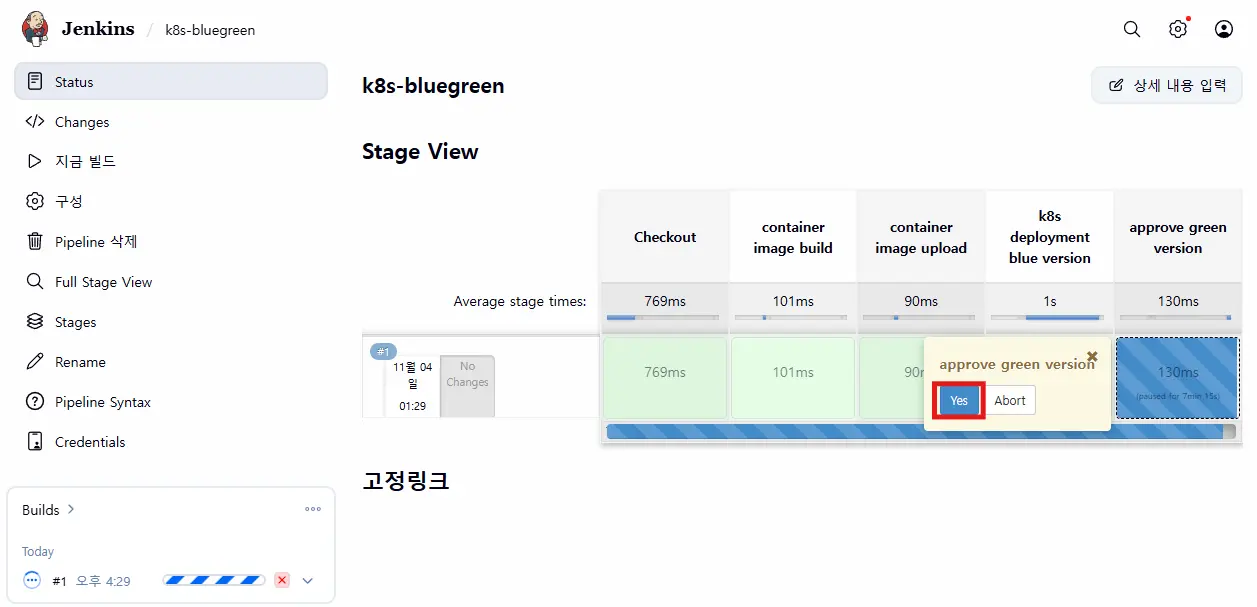

6.2.2. Green 배포 확인
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Hello from Blue
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 49s echo-server hashicorp/http-echo app=echo-server,version=blue
echo-server-green 2/2 2 2 5s echo-server hashicorp/http-echo app=echo-server,version=green
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 14m app=echo-server,version=blue
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.10:5678,10.244.1.9:5678 14m
------------
Hello from Blue
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 51s echo-server hashicorp/http-echo app=echo-server,version=blue
echo-server-green 2/2 2 2 7s echo-server hashicorp/http-echo app=echo-server,version=green
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 14m app=echo-server,version=blue
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.10:5678,10.244.1.9:5678 14m

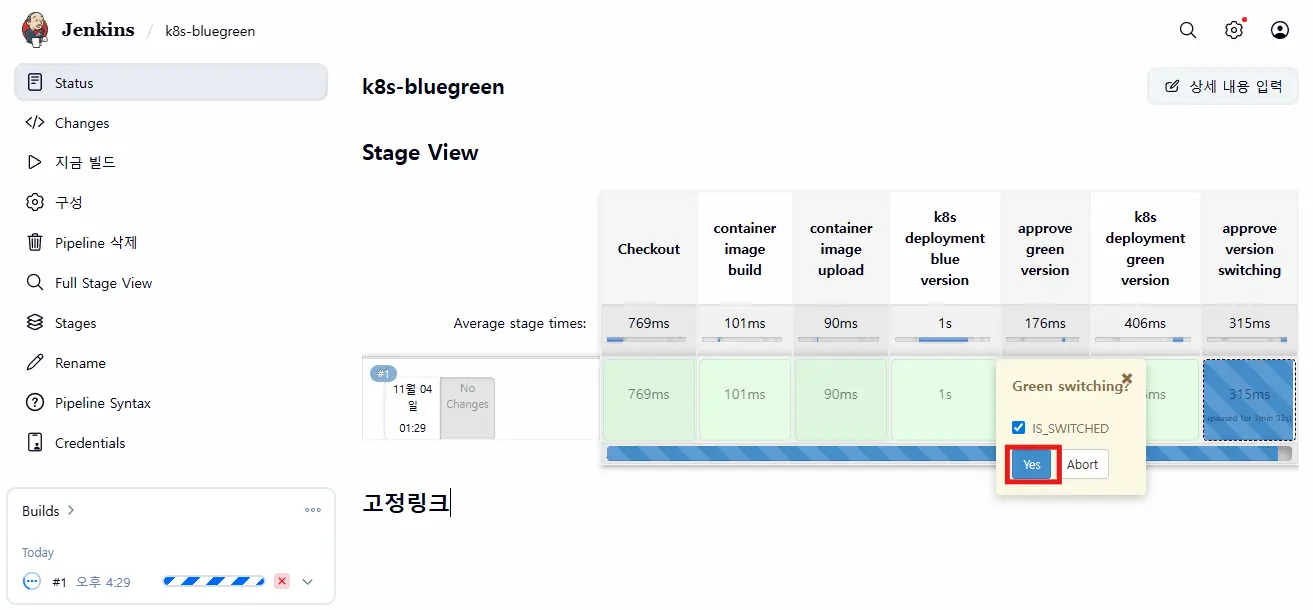

6.2.3. Blue -> Green Traffic 전환
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Hello from Blue
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 63s echo-server hashicorp/http-echo app=echo-server,version=blue
echo-server-green 2/2 2 2 19s echo-server hashicorp/http-echo app=echo-server,version=green
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 15m app=echo-server,version=green
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.11:5678,10.244.1.12:5678 15m
------------
Hello from Green
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 64s echo-server hashicorp/http-echo app=echo-server,version=blue
echo-server-green 2/2 2 2 20s echo-server hashicorp/http-echo app=echo-server,version=green
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 15m app=echo-server,version=green
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.11:5678,10.244.1.12:5678 15m
------------
Hello from Green
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 66s echo-server hashicorp/http-echo app=echo-server,version=blue
echo-server-green 2/2 2 2 22s echo-server hashicorp/http-echo app=echo-server,version=green
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 15m app=echo-server,version=green
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.11:5678,10.244.1.12:5678 15m
6.2.4. Blue Rollback
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
Hello from Green
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 2m48s echo-server hashicorp/http-echo app=echo-server,version=blue
echo-server-green 2/2 2 2 4m6s echo-server hashicorp/http-echo app=echo-server,version=green
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 18m app=echo-server,version=blue
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.13:5678,10.244.1.14:5678 18m
------------
Hello from Blue
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 2m50s echo-server hashicorp/http-echo app=echo-server,version=blue
echo-server-green 2/2 2 2 4m8s echo-server hashicorp/http-echo app=echo-server,version=green
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 18m app=echo-server,version=blue
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.13:5678,10.244.1.14:5678 18m
------------
Hello from Blue
NAME READY UP-TO-DATE AVAILABLE AGE CONTAINERS IMAGES SELECTOR
echo-server-blue 2/2 2 2 2m52s echo-server hashicorp/http-echo app=echo-server,version=blue
echo-server-green 2/2 2 2 4m10s echo-server hashicorp/http-echo app=echo-server,version=green
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE SELECTOR
service/echo-server-service NodePort 10.96.85.241 <none> 80:30000/TCP 18m app=echo-server,version=blue
NAME ENDPOINTS AGE
endpoints/echo-server-service 10.244.1.13:5678,10.244.1.14:5678 18m
7. 실습 리소스 정리
1
kubectl delete deploy echo-server-blue echo-server-green ; kubectl delete svc echo-server-service
궁금하신 점이나 추가해야 할 부분은 댓글이나 아래의 링크를 통해 문의해주세요.
Written with KKamJi
This post is licensed under CC BY 4.0 by the author.
